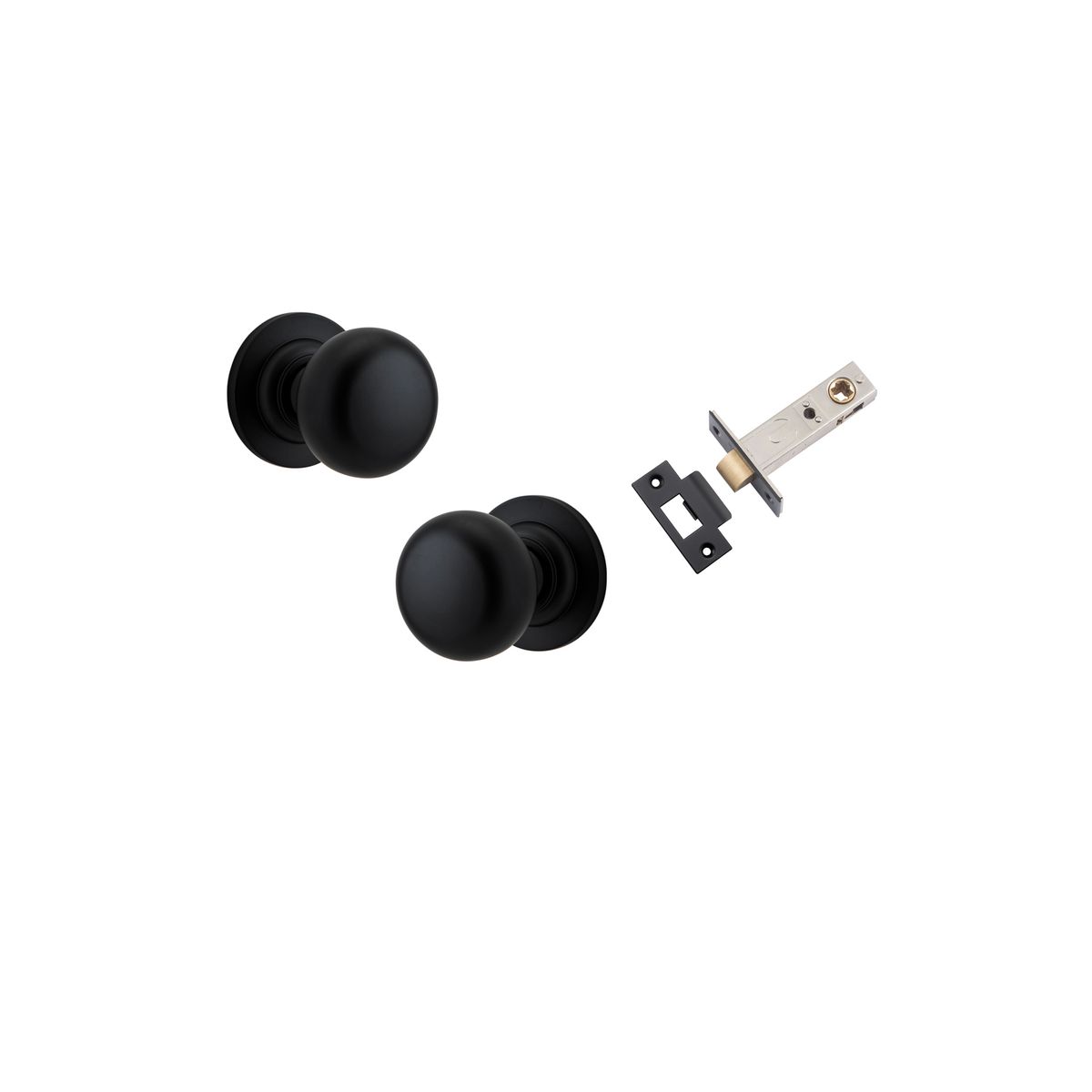

Cambridge Knob - Round Rose Passage Kit
0203KPASS60
The Cambridge knob can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature Brass
Door Function
Passage Privacy EntranceDoor Set Option
What's in the box
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only
Features & Benefits
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Cambridge knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
This product comes with face fix wood screws and tie bolts to suit 55mm thick doors, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering. Extended tie bolts sold separately to suit 90mm thick doors.
Specifications
| Backset: | 60mm |
|---|---|
| Backplate Diameter: | 58mm |
| Height: | 52mm |
| Width: | 52mm |
| Projection: | 67mm |
