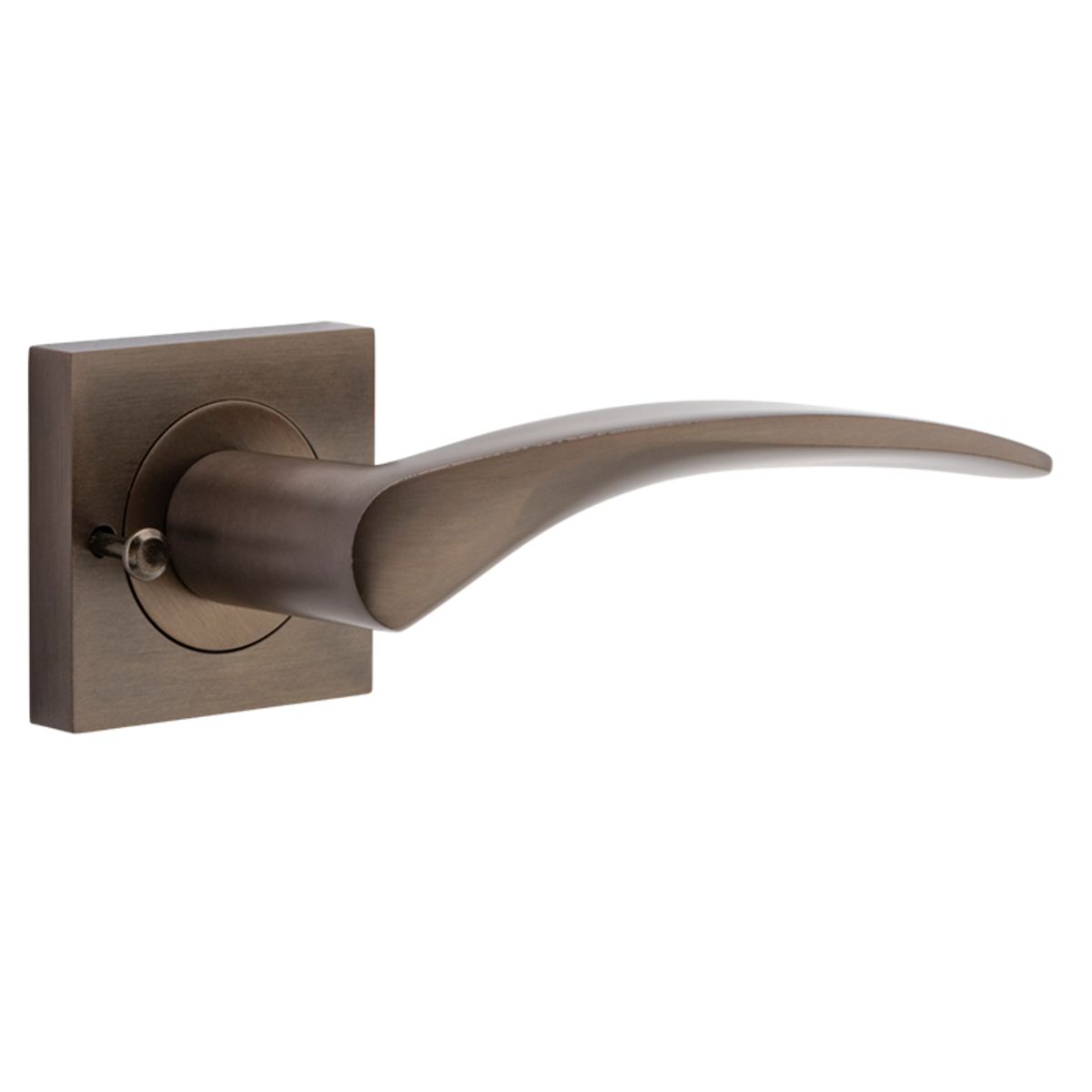

Oxford Lever - Square Rose (Inbuilt Privacy)
0281KIBPRIV60
With its flowing lines and subtle curve, the Oxford lever will complement a range of settings. Perfect for a new extension on an older home or light, minimal spaces, the Oxford blends various design influences to suit classic and modern homes.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option

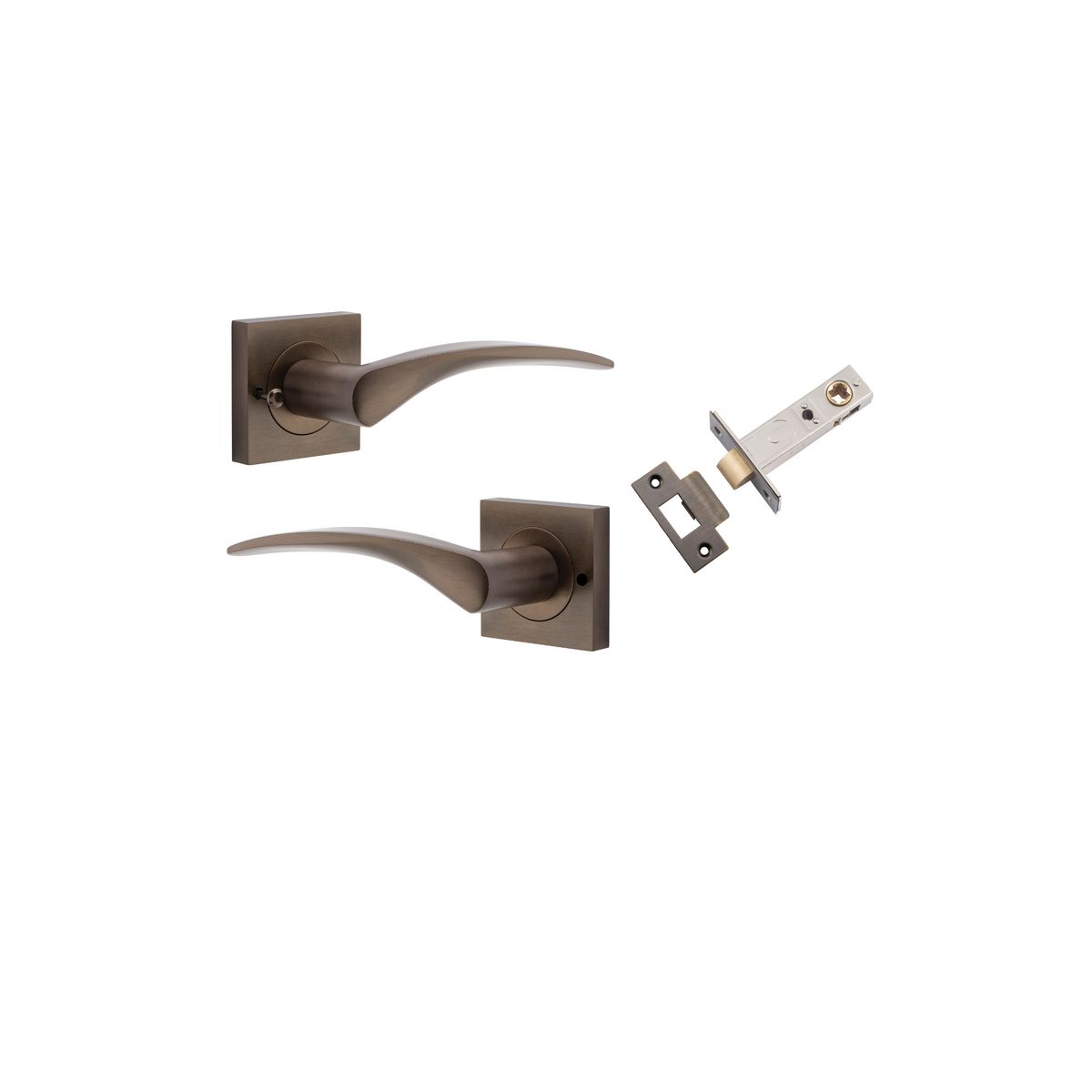

What's in the box
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Oxford levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 125mm |
| Projection: | 63mm |
