Annecy Lever - Round Rose Entrance Kit with Separate High Security Lock
0328KENTR60KT

Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time.

The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

Door Function

Passage Privacy Entrance
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

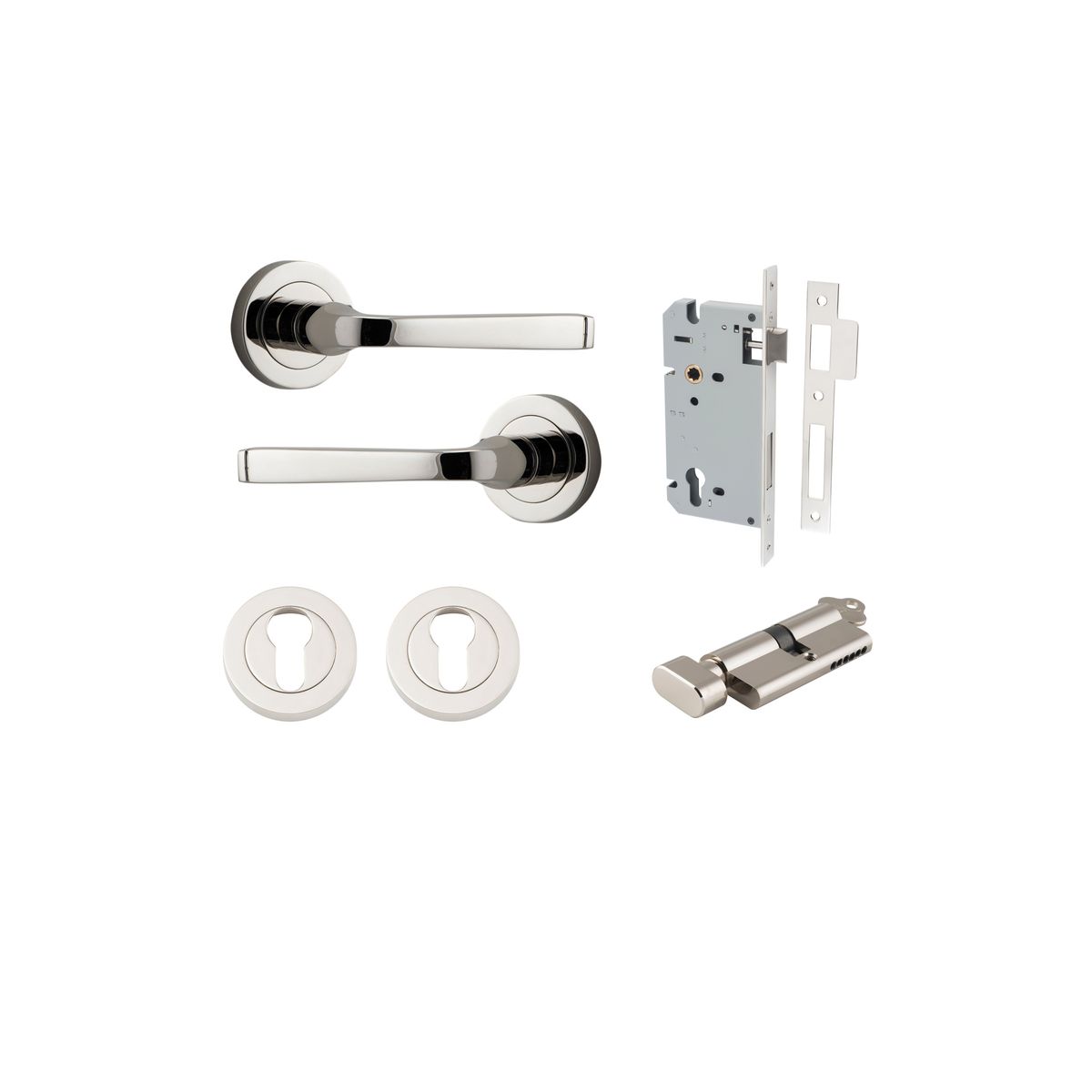

What's in the box

2 x Levers / Knobs on Round / Square Roses of your choice
1 x Euro Mortice Lock CTC 85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
2 x Euro Escutcheon Concealed Fix Round / Square
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
37 x Screws
1 x Dust Box
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
2 x Instruction Manuals
*With Square Rose only

Features & Benefits

  • Cycle Tested
    Successfully tested to meet highest durability rating (500,000 cycles)

Notes

All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications

Backset:60mm
Backplate Diameter:52mm
Height:52mm
Width:52mm
Length:117mm
Projection:66mm
Centre to centre:41.5mm
Download Spec Sheet
