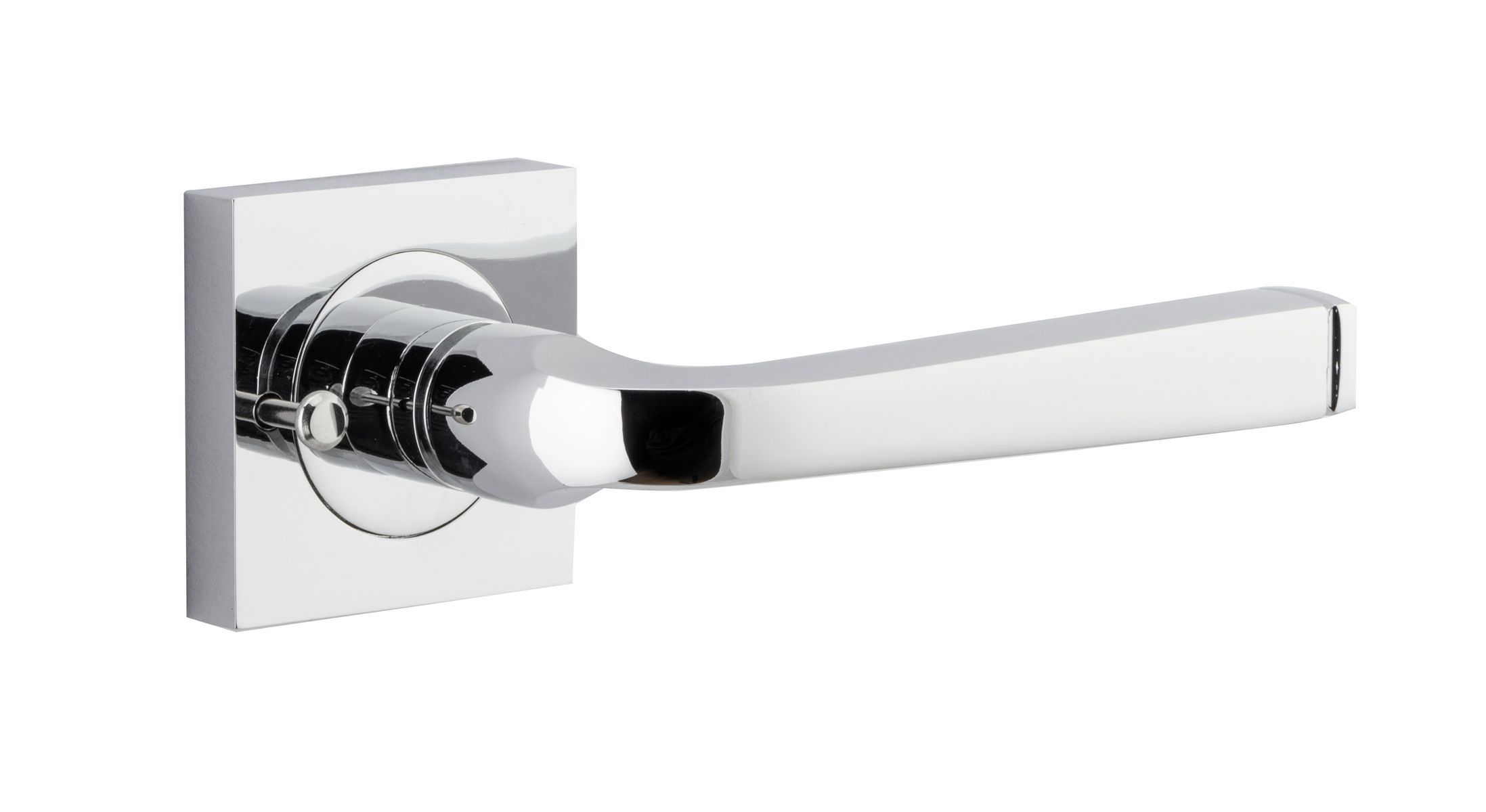

Annecy Lever - Square Rose (Inbuilt Privacy)
0394KIBPRIV60

Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time.

The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

Door Function

Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

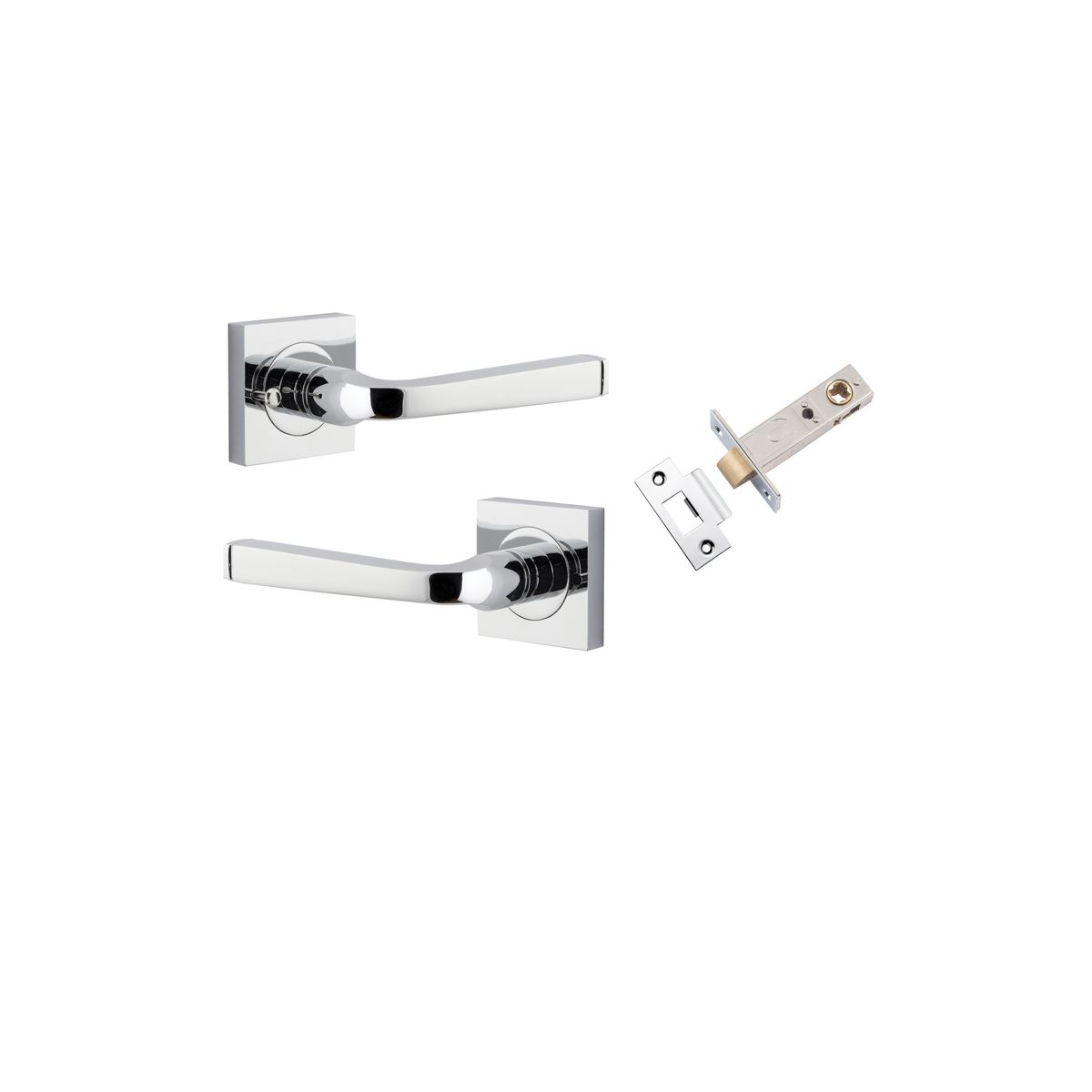

What's in the box

2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual

Features & Benefits

  • Cycle Tested
    Successfully tested to meet highest durability rating (500,000 cycles)

Notes

All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

Specifications

Backset:60mm
Height:52mm
Width:52mm
Length:117mm
Projection:66mm
Centre to centre:41.5mm
Download Spec Sheet
Find a Retailer
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
0394KIBPRIV60 - Annecy Lever - Square Rose (Inbuilt Privacy) - Polished Chrome - Privacy
