Annecy Lever - Square Rose Entrance Kit with Separate High Security Lock
0397KENTR60KK
The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature Brass
Door Function
Passage Privacy EntranceDoor Set Option

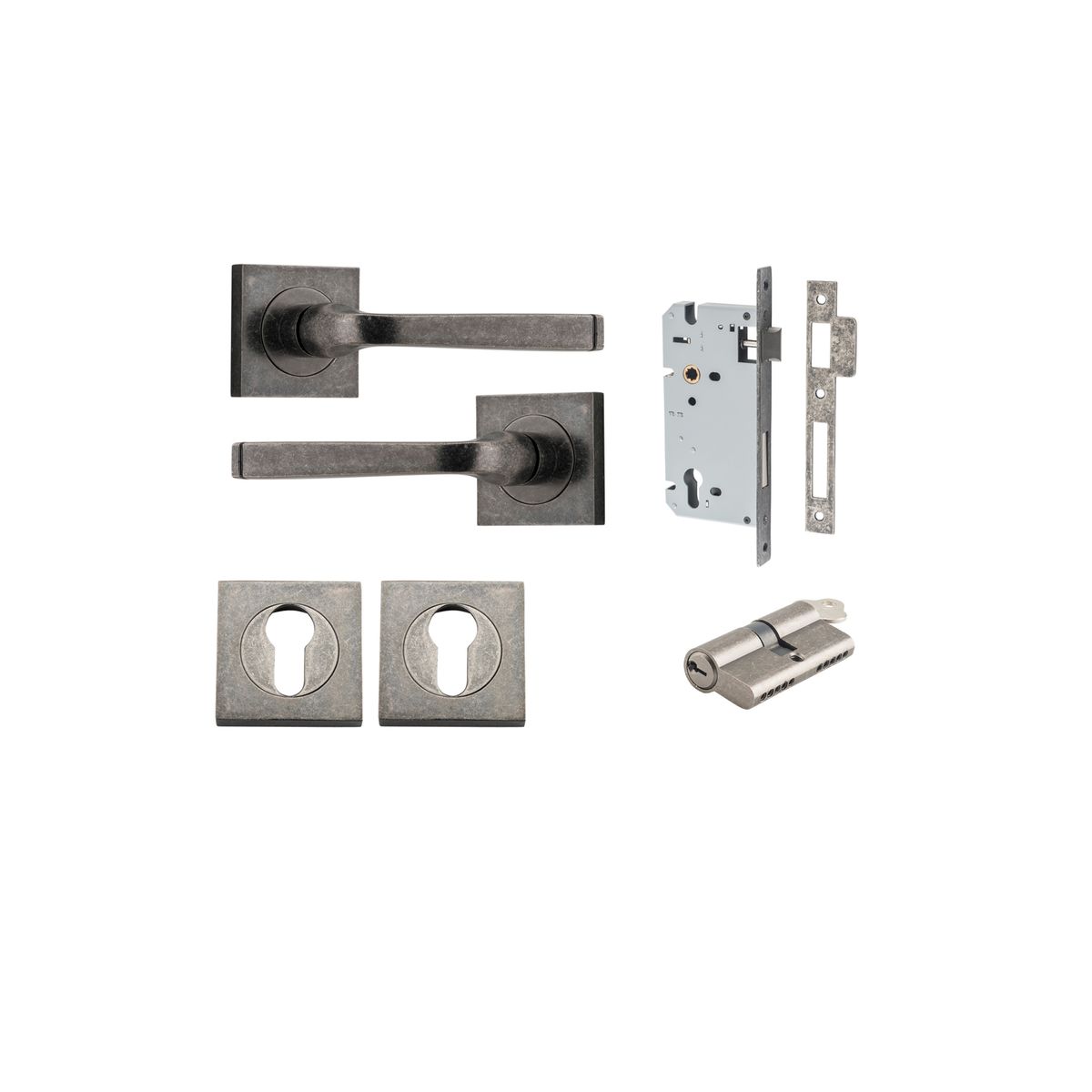

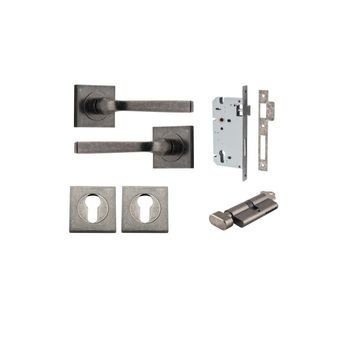

What's in the box
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Euro Mortice Lock CTC 85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
2 x Euro Escutcheon Concealed Fix Round / Square
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
37 x Screws
1 x Dust Box
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
2 x Instruction Manuals
*With Square Rose only
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 117mm |
| Projection: | 66mm |
| Centre to centre: | 41.5mm |
