Annecy Lever - Square Rose Privacy Kit with Separate Privacy Turn
0398KPRIV60
Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time.
The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option

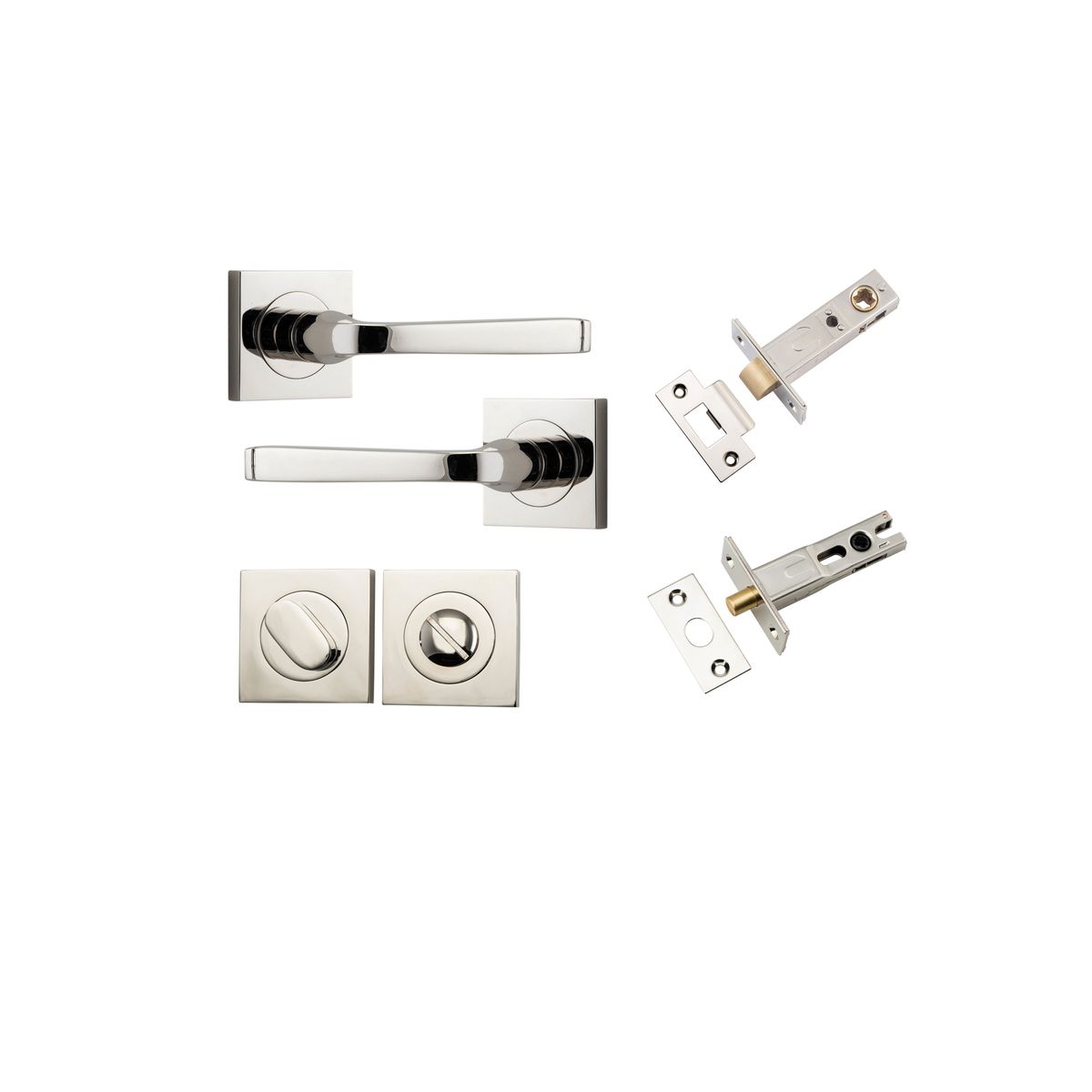

What's in the box
2 x Levers on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Turn Oval Concealed Fix Round / Square
1 x Privacy Bolt Round Backset 60mm
1 x Standard Spindle
2 x Sprung Spindles
2 x Privacy Spindles
39 x Screws
2 x Dust Boxes
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
1 x Instruction Manual
*With Square Rose only
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 117mm |
| Projection: | 66mm |
| Centre to centre: | 41.5mm |
