Como Lever - Rectangular Backplate Passage Kit
10254KPASS60
Inspired by the elegant designs of mid-century Italian architecture, the Como lever offers minimalist sophistication. A tapered front profile is contrasted by a broad top surface that is both functional and tactile.
The Como lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Como lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option
What's in the box

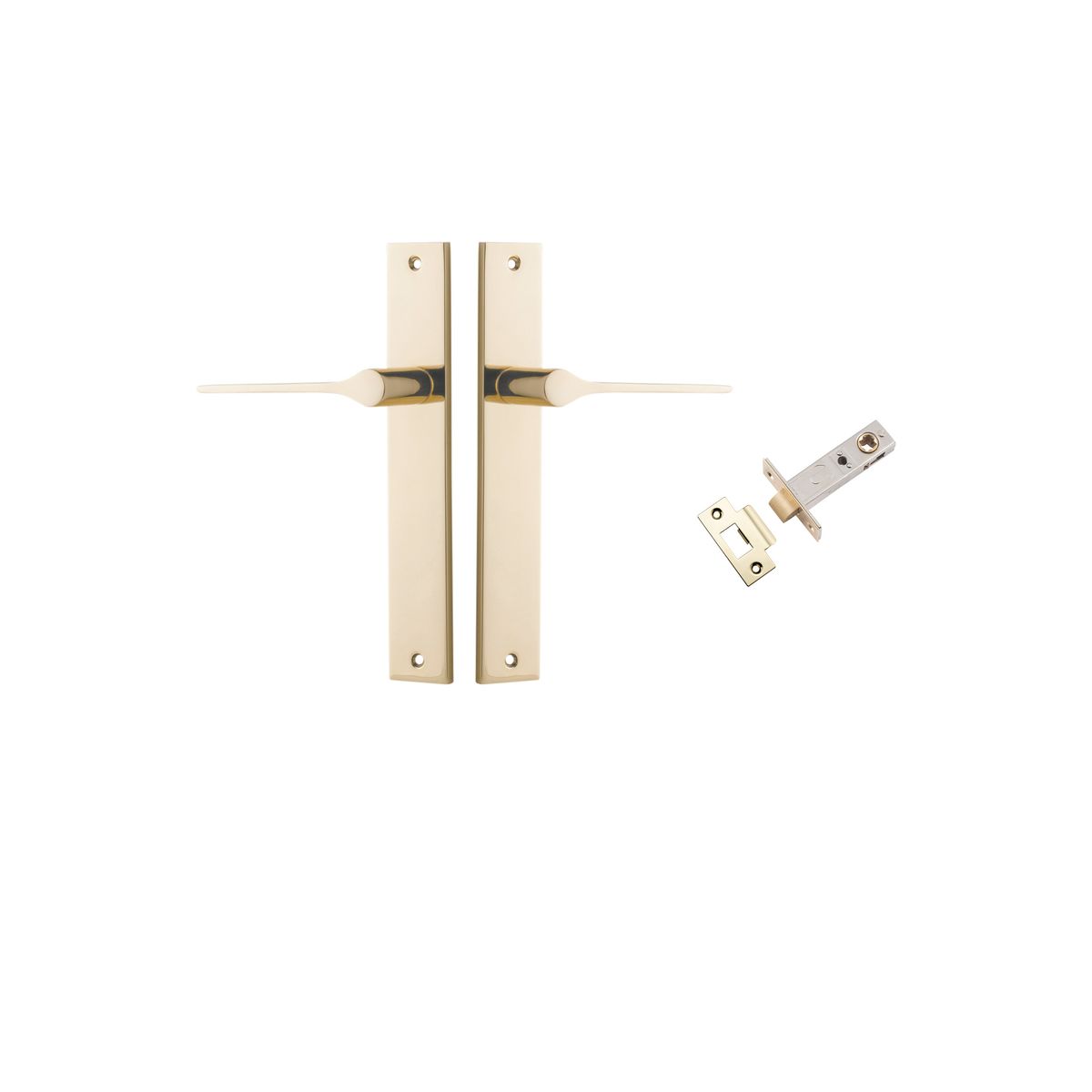

2 x Como Levers on Rectangular Backplate in Polished Brass
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Notes
All Como levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 38mm |
| Length: | 119mm |
| Projection: | 59mm |
| Centre to centre: | 205mm |
