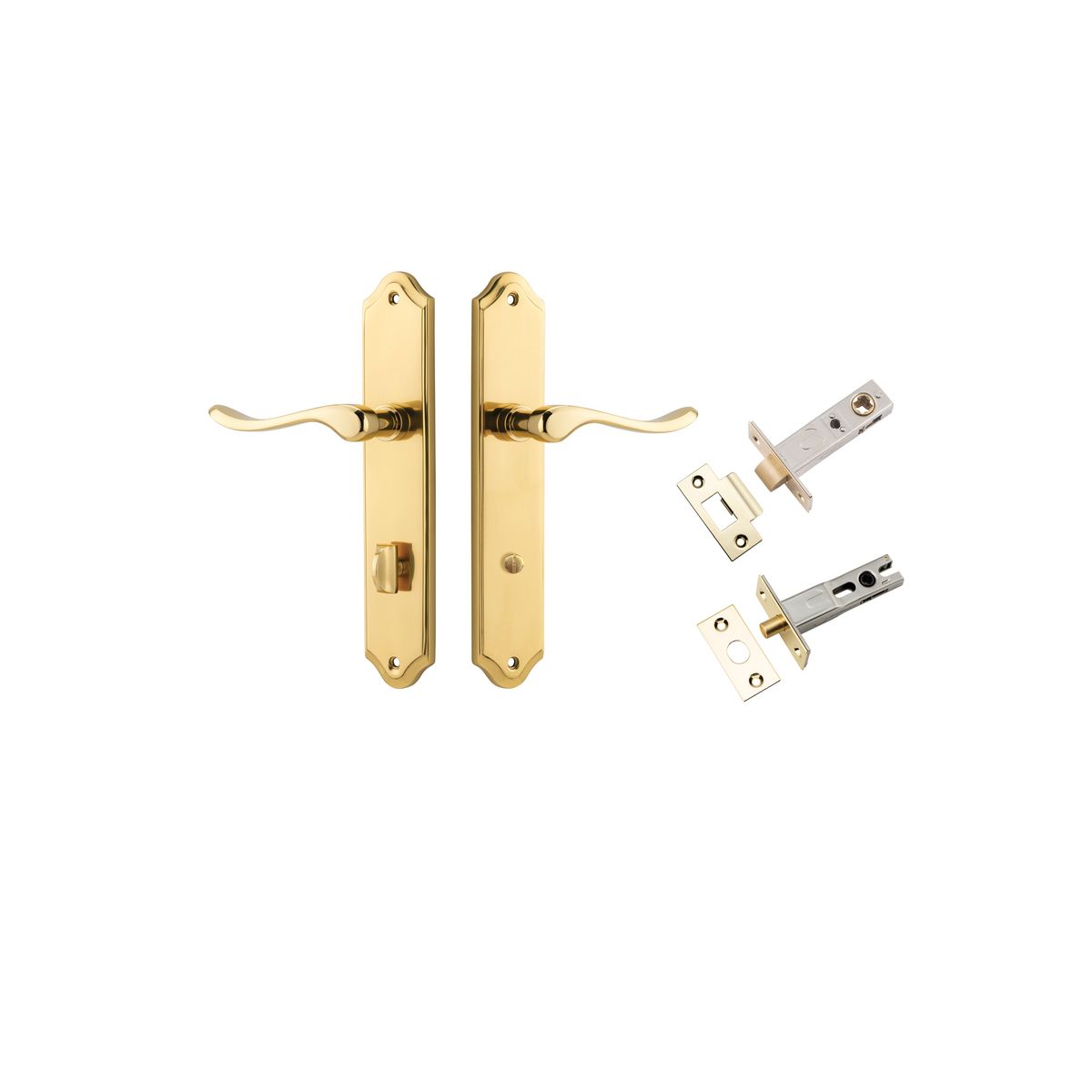

Stirling Lever - Shouldered Backplate Privacy Kit with Privacy Turn
10422KPRIV60
Inspired by decorative and ornamental Victorian era design, the Stirling adds an element of prestige to any space. Perfect for double French doors, this timeless piece will provide moments of elegance throughout your home.
The Stirling lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Stirling lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option
What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
Notes
All Stirling levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 250mm |
| Width: | 48mm |
| Length: | 116mm |
| Projection: | 64mm |
| Centre to centre: | 85mm |
