Oxford Lever - Rectangular Backplate Entrance Kit with High Security Lock
10704KENTR60KT
With its flowing lines and subtle curve, the Oxford lever will complement a range of settings. Perfect for a new extension on an older home or light, minimal spaces, the Oxford blends various design influences to suit classic and modern homes.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Door Function
Passage Privacy Entrance
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.
Door Set Option

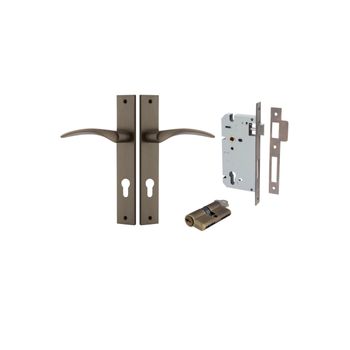

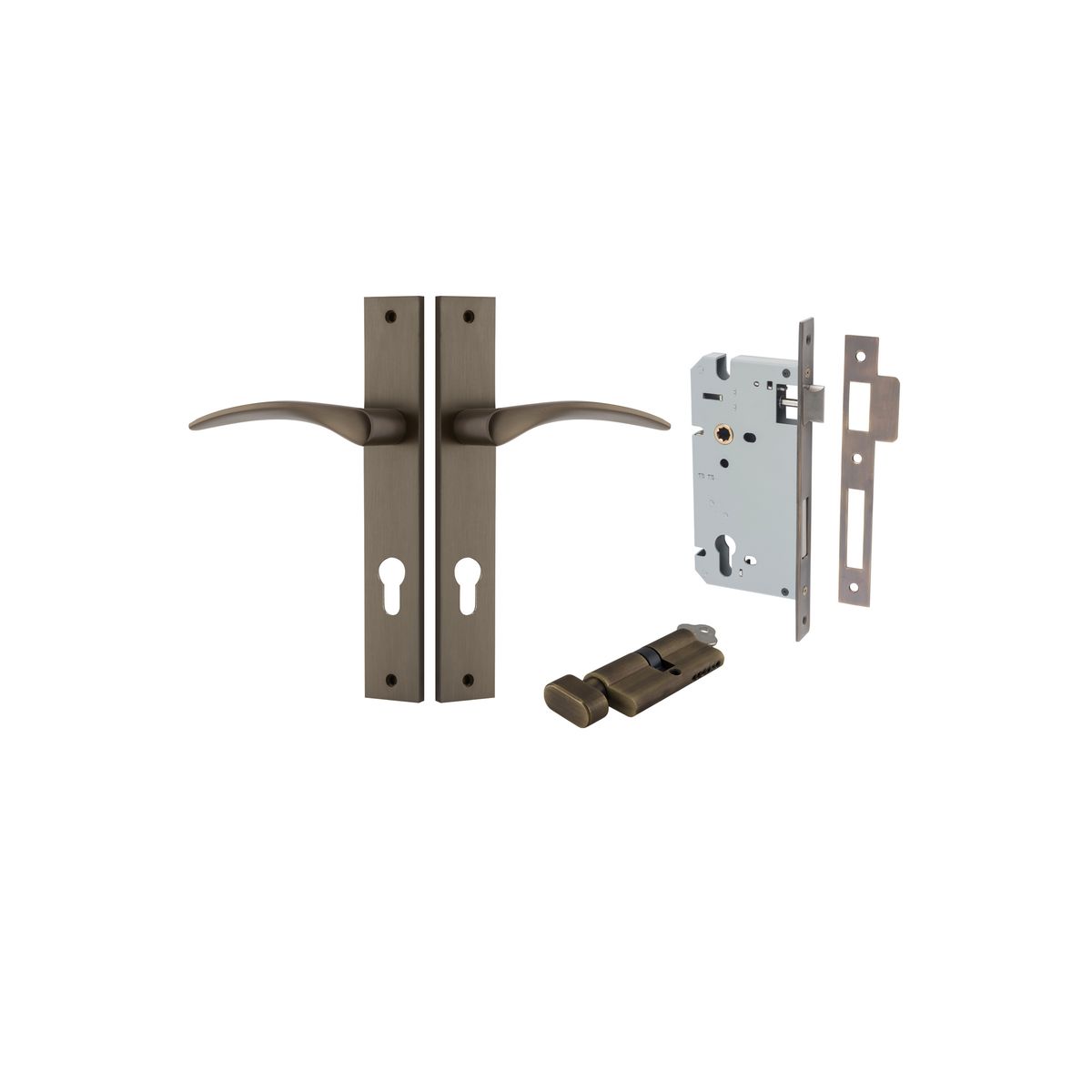

What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Notes
All Oxford levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 240mm |
| Width: | 38mm |
| Length: | 125mm |
| Projection: | 60mm |
| Centre to centre: | 85mm |
