Baltimore Lever - Chamfered Backplate Privacy Kit with Privacy Turn
10782KPRIV60
The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic.
Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.
Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option
What's in the box

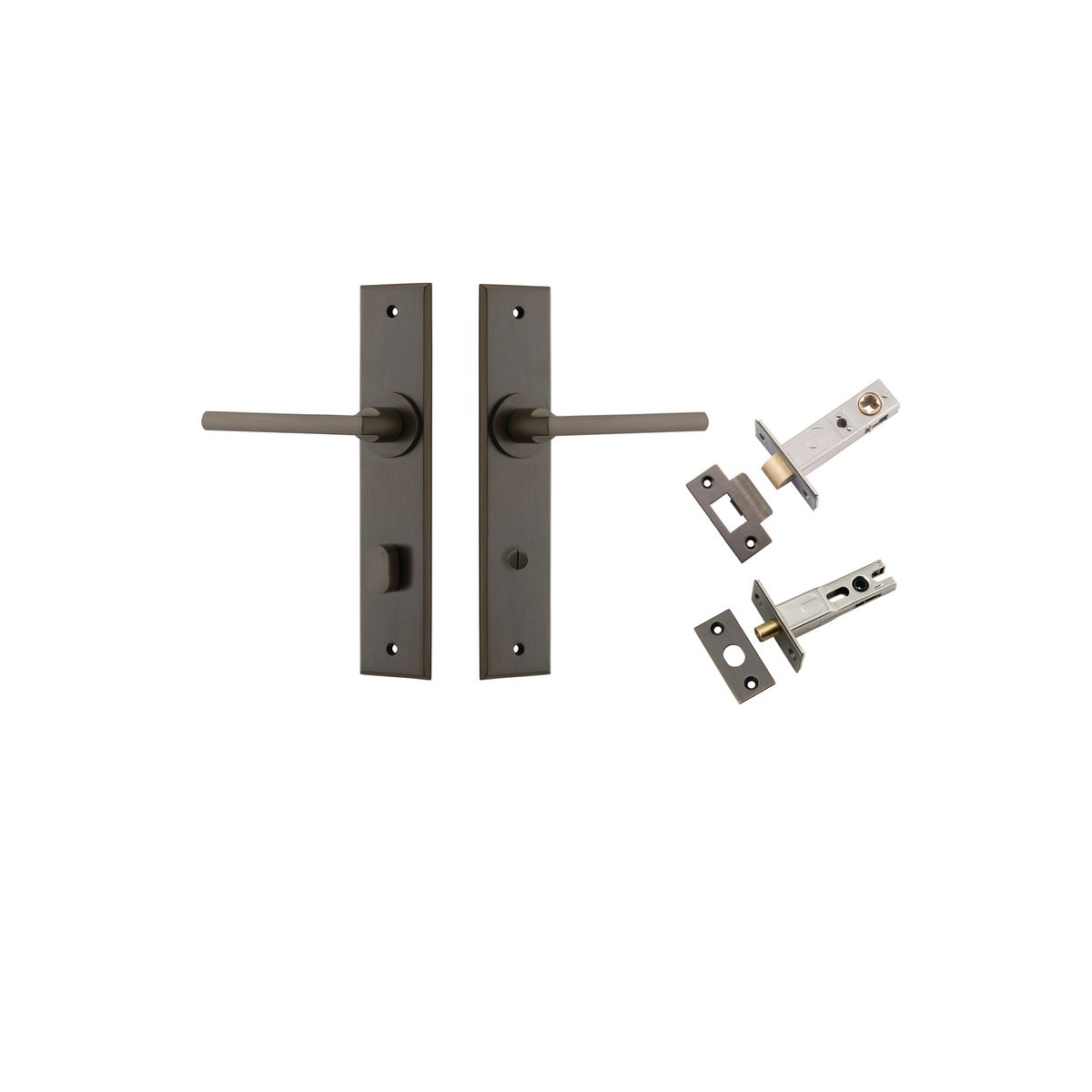

2 x Baltimore Levers on Chamfered Backplate in Signature Brass
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
Notes
All Baltimore levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 50mm |
| Length: | 118mm |
| Projection: | 56mm |
| Centre to centre: | 205mm |
Installation Guide and Drill Template
RRP:
MSRP:
$401 USD
