Helsinki Lever - Oval Backplate Passage Kit
10900KPASS60
The Helsinki takes its cues from industrial design, celebrating the simplicity of clean lines with a design accent at the join with minimalistic tubular lever.
The Helsinki lever can be purchased as a passage, privacy, or entrance kit, which includes all components required for your door to function.
As part of the Helsinki whole-of-home collection, a matching pull handle and range of cabinet pulls are also available.
The Helsinki lever can be purchased as a passage, privacy, or entrance kit, which includes all components required for your door to function.
As part of the Helsinki whole-of-home collection, a matching pull handle and range of cabinet pulls are also available.
Finish
Brushed Gold PVD Brushed Brass Brushed Chrome Matt Black Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option

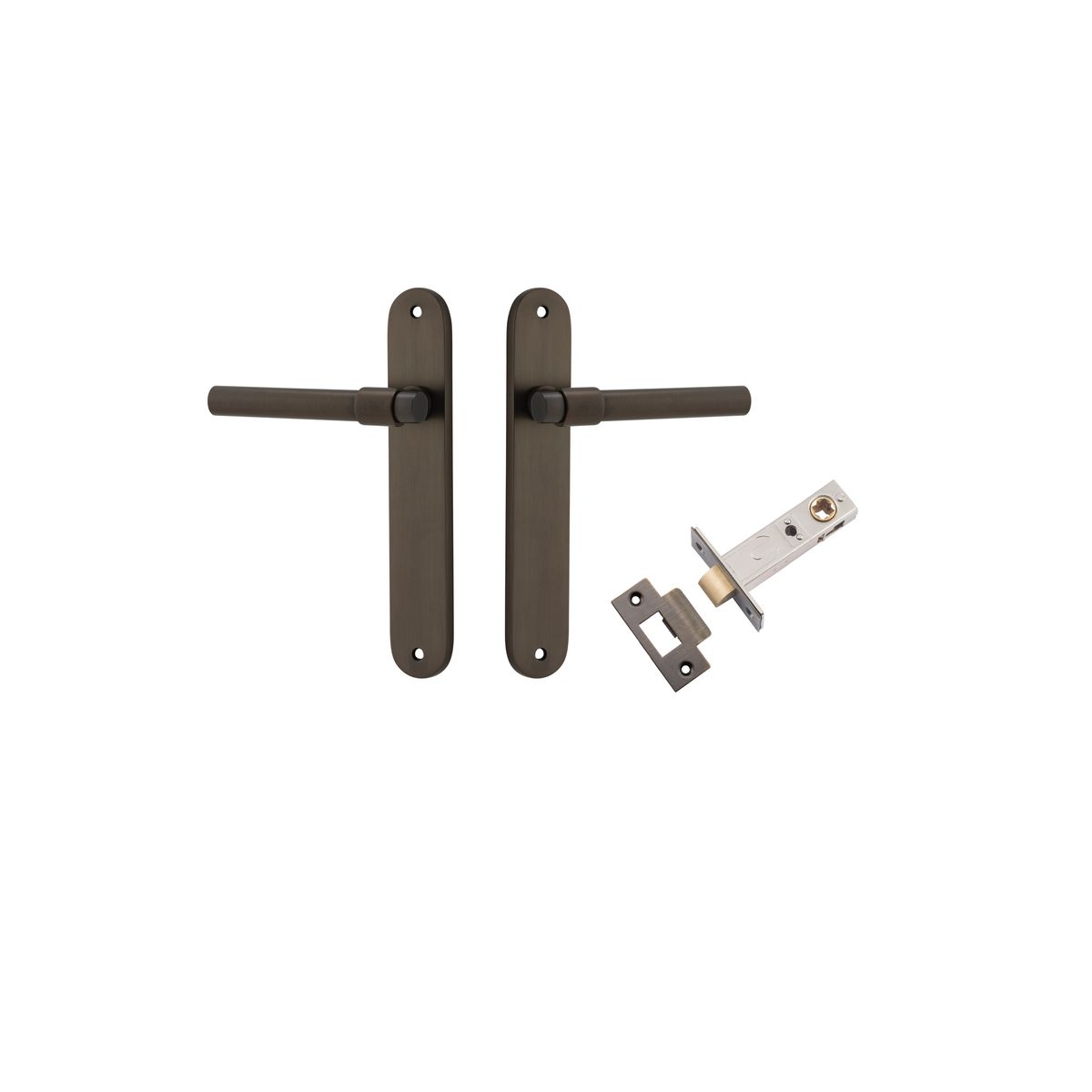

What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Helsinki levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 240mm |
| Width: | 40mm |
| Length: | 137mm |
| Projection: | 58mm |
| Centre to centre: | 205mm |
