Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock
11702KENTR60KK

The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic.

Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.

Door Function

Passage Privacy Entrance
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

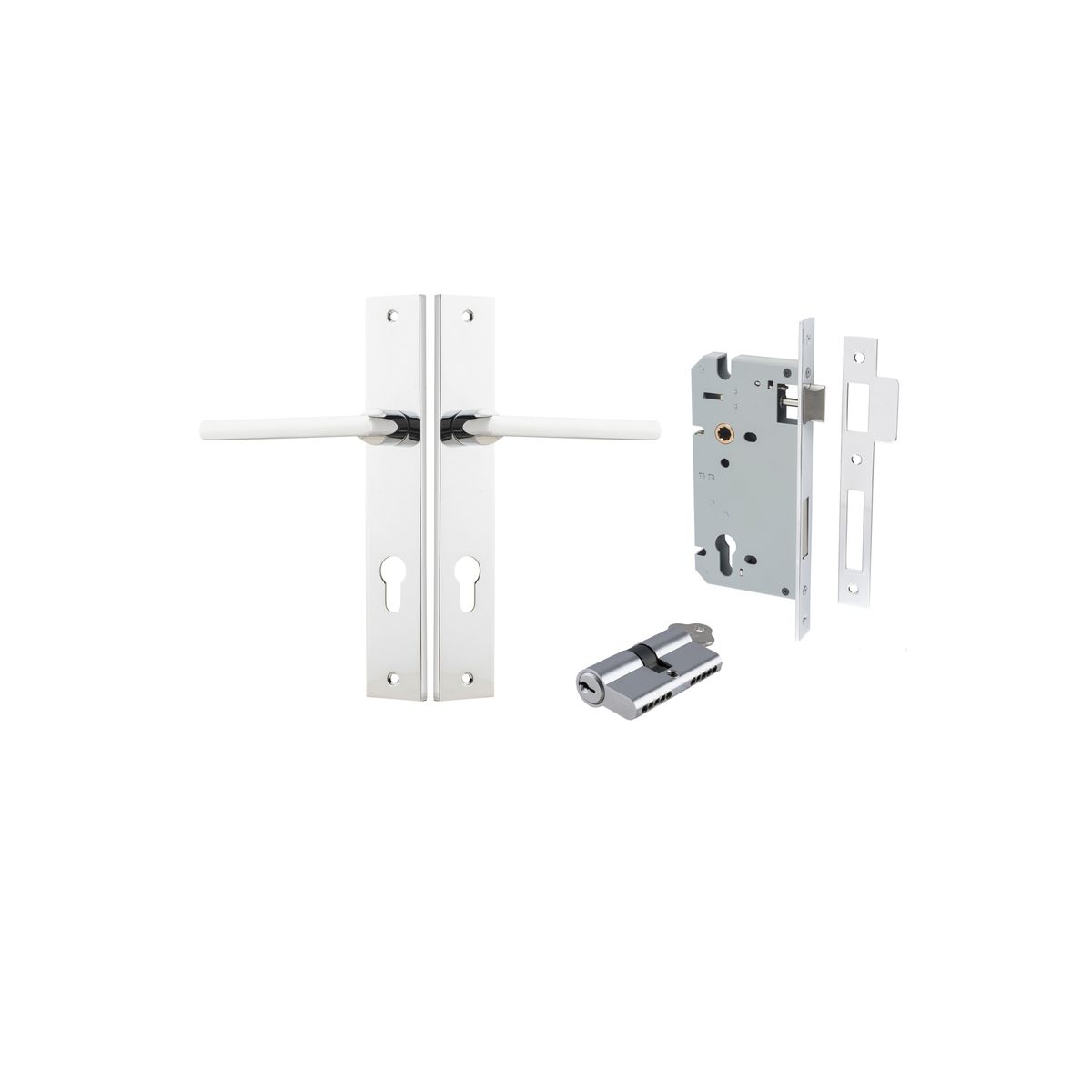

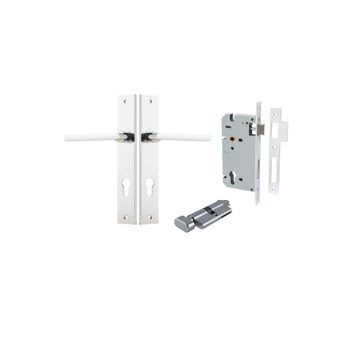

What's in the box

2 x Levers / Knobs on Backplates of your choice
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

Notes

All Baltimore levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications

Backset:60mm
Height:240mm
Width:38mm
Length:118mm
Projection:54mm
Centre to centre:205mm
Download Spec Sheet
Find a Retailer
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
11702KENTR60KK - Baltimore Lever - Rectangular Backplate Entrance Kit with High Security Lock - Polished Chrome - Entrance
