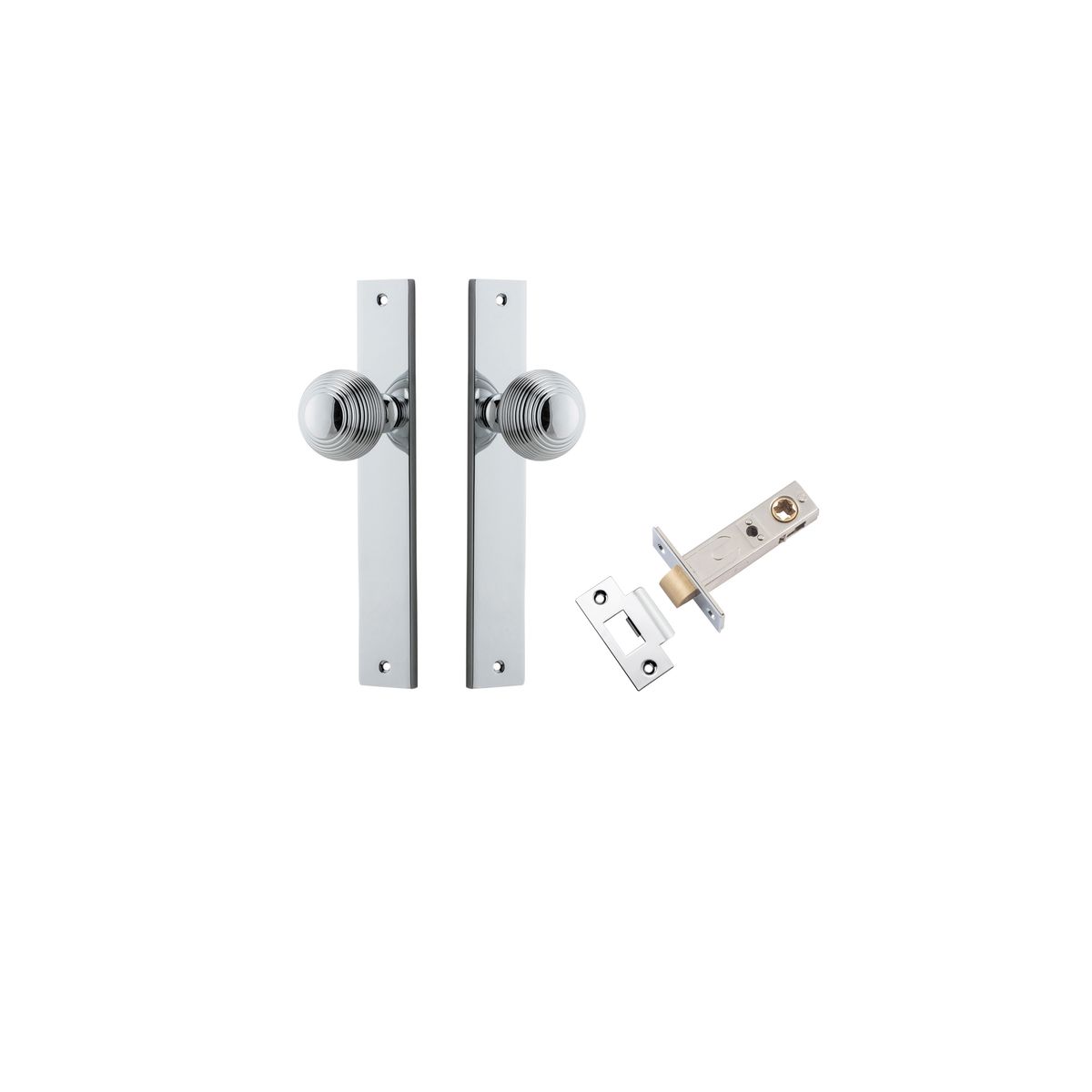

Guildford Knob - Rectangular Backplate Passage Kit
11824KPASS60
The elegance of the Guildford is embodied in its reeded form, inspired by designs of the early Georgian era. Used with a concealed fix rose, the Guildford provides a perfect option for your period restoration, contemporary extension, or new build. Paired with a sleek backplate, the knob perfectly bridges the gap between traditional and contemporary.
The Guildford knob can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Guildford knob can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option
What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Guildford knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 240mm |
| Width: | 38mm |
| Projection: | 72mm |
| Centre to centre: | 205mm |
