Berlin Lever - Chamfered Backplate Privacy Kit
12794KPRIV60
The Berlin lever features a sleek bar-shaped handle, reminiscent of a classic Bauhaus design. The lever’s clean and unadorned form is visually striking, while its ergonomic handle ensures ease of use. The Berlin lever is an essential choice for any project that seeks to capture the essence of modern style and practicality.
The Berlin lever can be purchased as a passage, privacy or entrance kit which includes all components required for your door to function.
As part of the Berlin whole-of-home collection, a matching pull, cabinet knob and privacy turn are also available.
The Berlin lever can be purchased as a passage, privacy or entrance kit which includes all components required for your door to function.
As part of the Berlin whole-of-home collection, a matching pull, cabinet knob and privacy turn are also available.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option

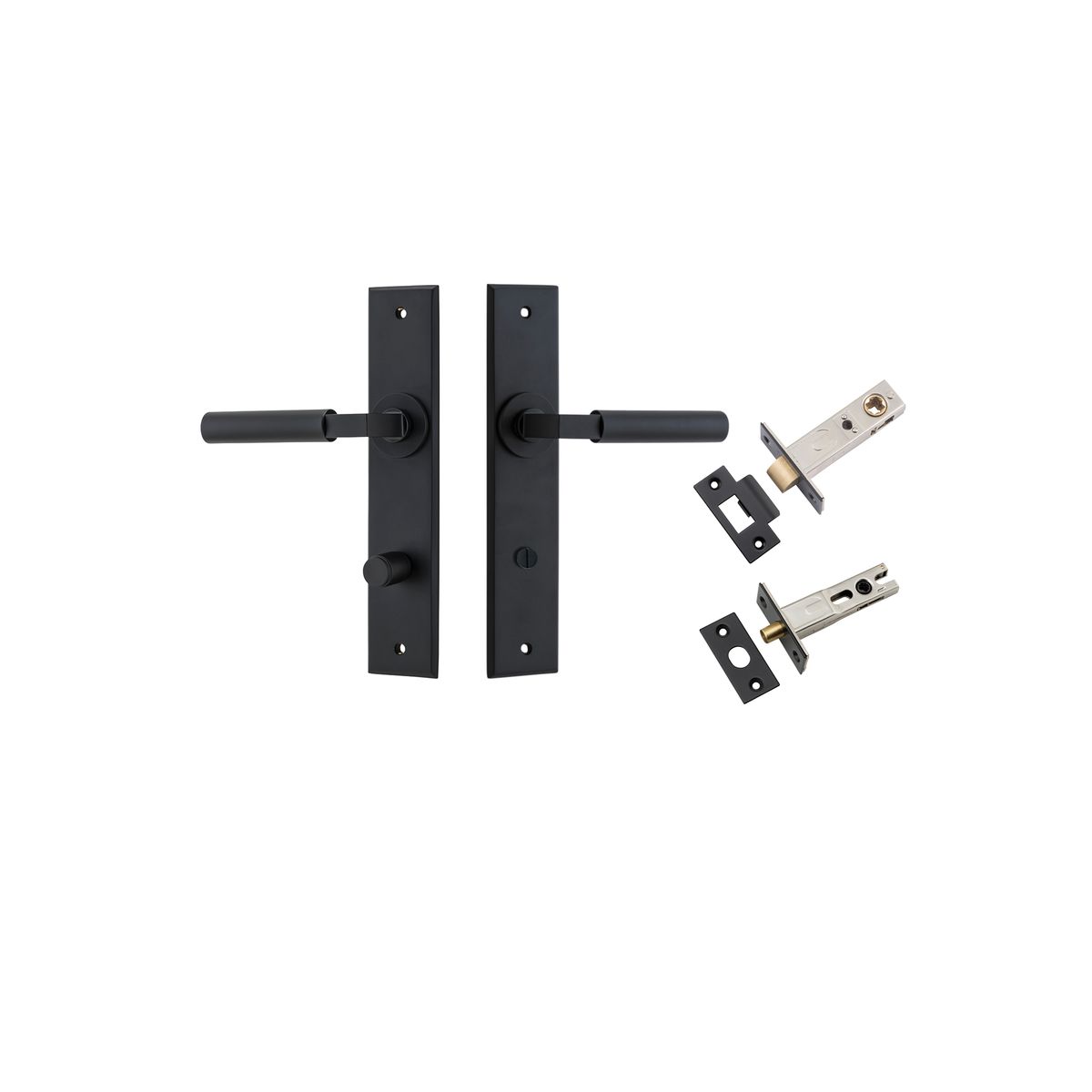

What's in the box
2 x Berlin Levers on Chamfered Backplate in Matt Black
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
Notes
All Berlin levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 50mm |
| Length: | 120mm |
| Projection: | 59mm |
| Centre to centre: | 205mm |
