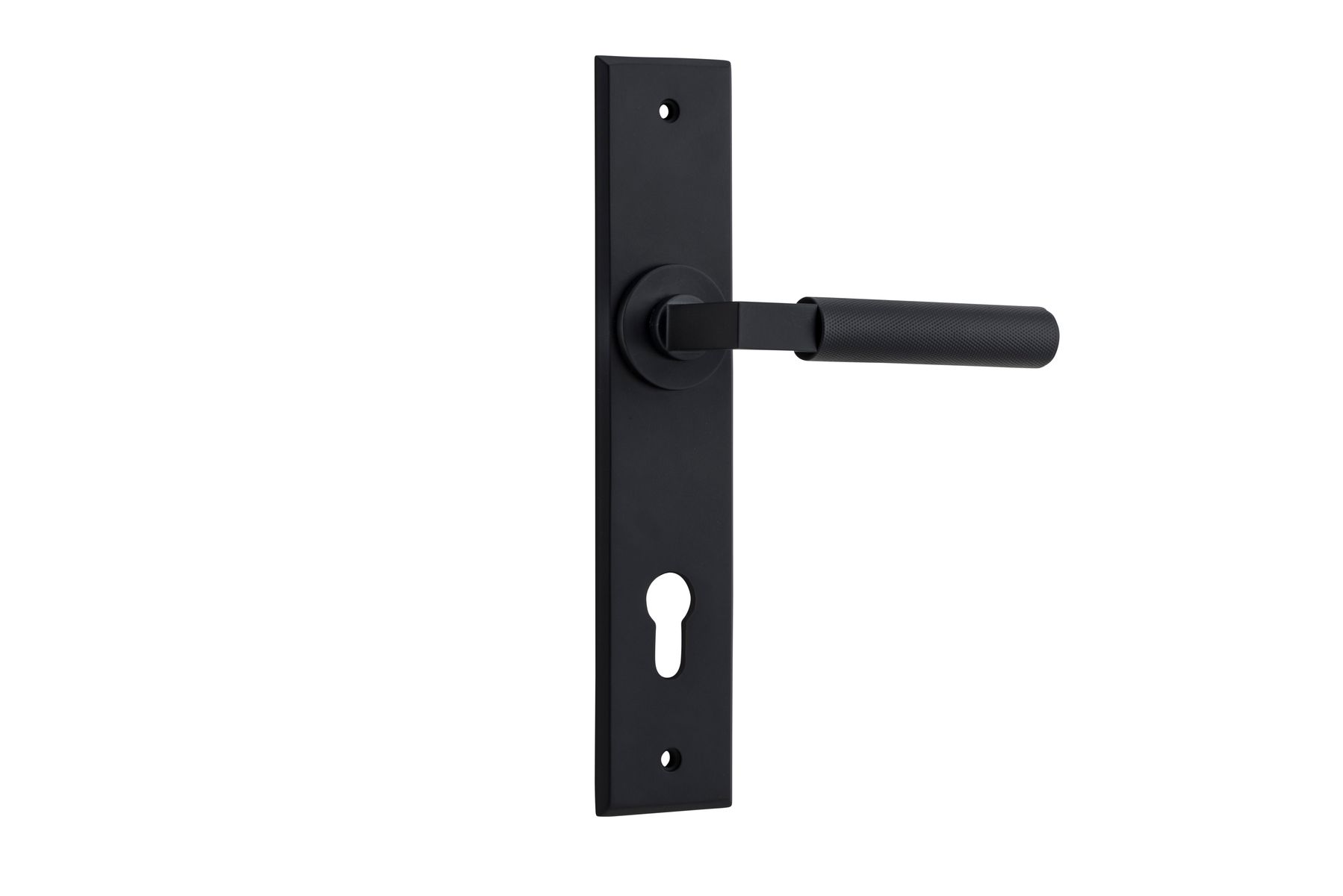

Brunswick Lever - Chamfered Backplate
12796E85
The Brunswick lever is an impactful addition to any interior, the diamond cut cross knurling across the bar handle serves as a textural point of difference, sure to command attention.
The Brunswick lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Brunswick whole-of-home collection, matching pull handles, cabinetware and a privacy turn are also available.
The Brunswick lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Brunswick whole-of-home collection, matching pull handles, cabinetware and a privacy turn are also available.
Door Function
Passage Privacy Entrance
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.
What's in the box
Notes
All Brunswick levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 50mm |
| Length: | 120mm |
| Projection: | 59mm |
| Centre to centre: | 205mm |
