Berlin Lever - Rectangular Backplate Entrance Kit with High Security Lock
15250KENTR60KK
The Berlin lever features a sleek bar-shaped handle, reminiscent of a classic Bauhaus design. The lever’s clean and unadorned form is visually striking, while its ergonomic handle ensures ease of use. The Berlin lever is an essential choice for any project that seeks to capture the essence of modern style and practicality.
The Berlin lever can be purchased as a passage, privacy or entrance kit which includes all components required for your door to function.
As part of the Berlin whole-of-home collection, a matching pull, cabinet knob and privacy turn are also available.
The Berlin lever can be purchased as a passage, privacy or entrance kit which includes all components required for your door to function.
As part of the Berlin whole-of-home collection, a matching pull, cabinet knob and privacy turn are also available.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.
Door Set Option

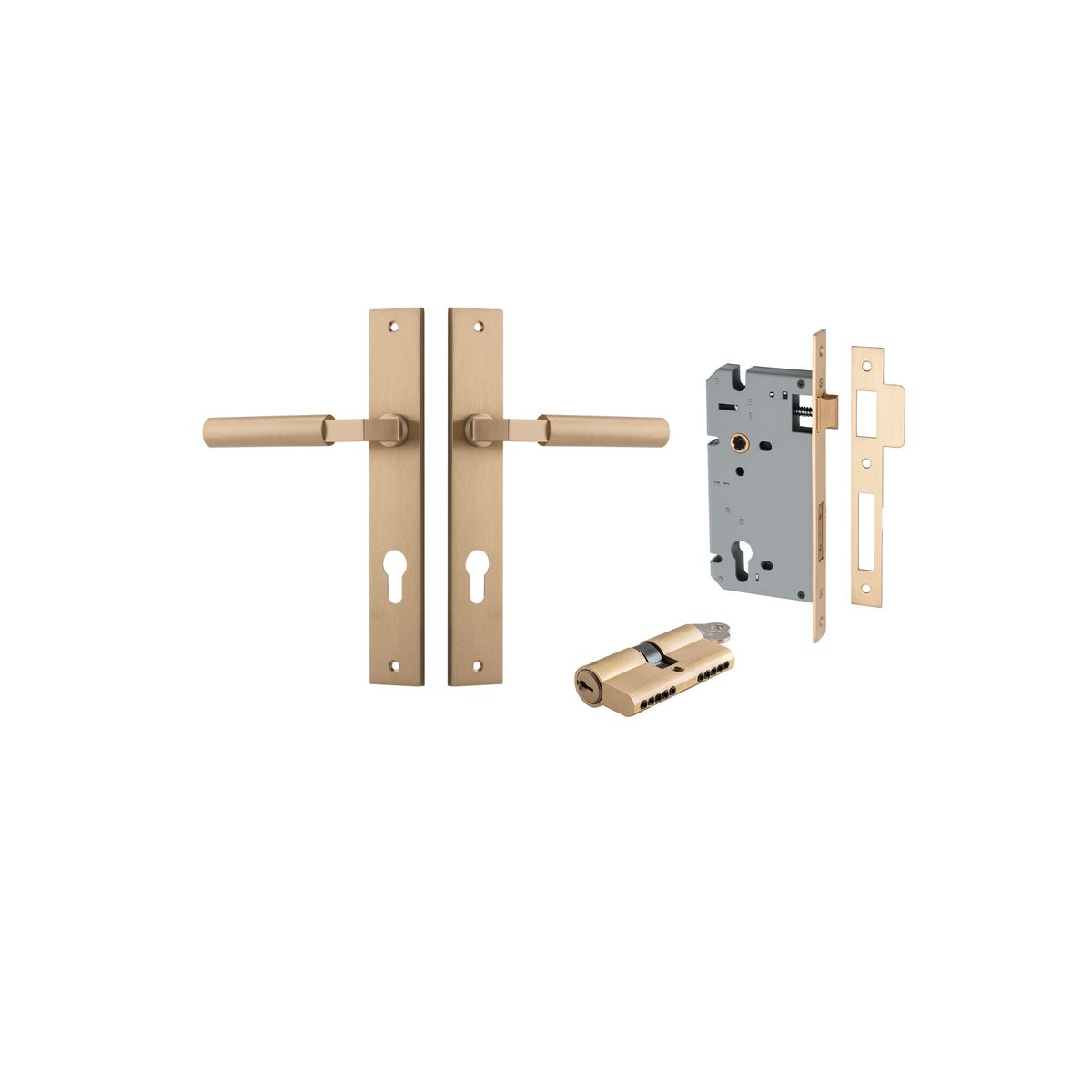

What's in the box
2 x Berlin Levers on Rectangular Backplate in Brushed Brass
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Notes
All Berlin levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 38mm |
| Length: | 120mm |
| Projection: | 57mm |
| Centre to centre: | 205mm |
