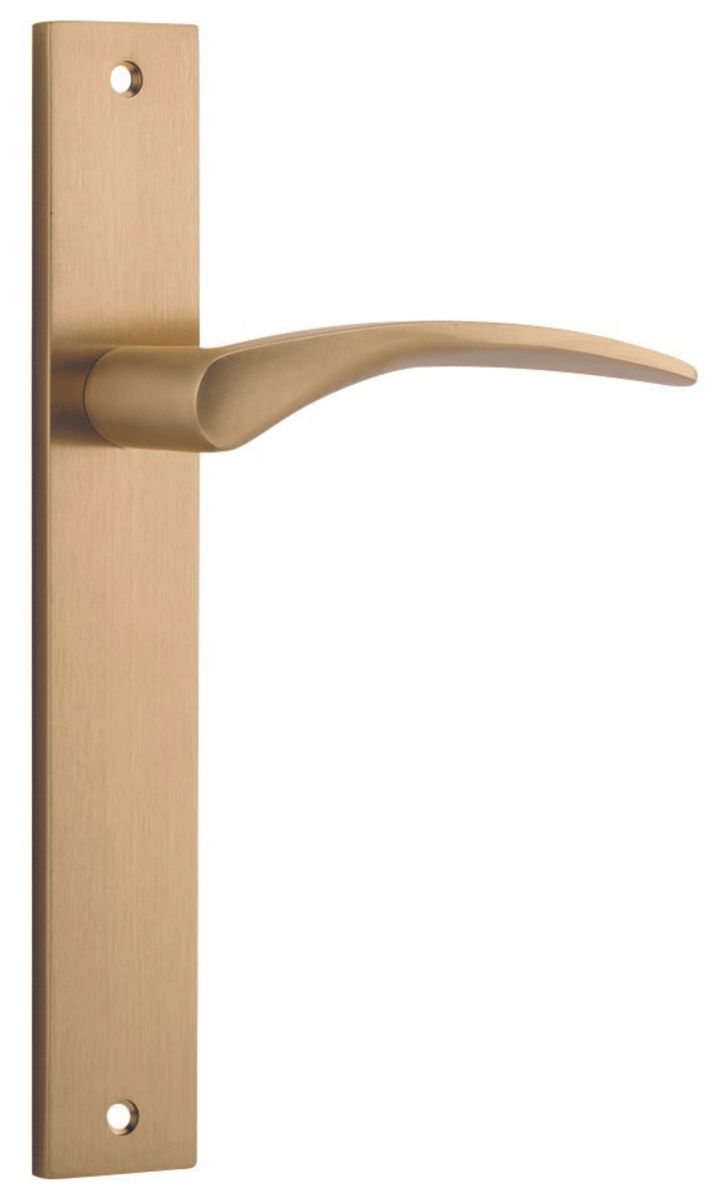

Oxford Lever - Rectangular Backplate
15704
With its flowing lines and subtle curve, the Oxford lever will complement a range of settings. Perfect for a new extension on an older home or light, minimal spaces, the Oxford blends various design influences to suit classic and modern homes.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option

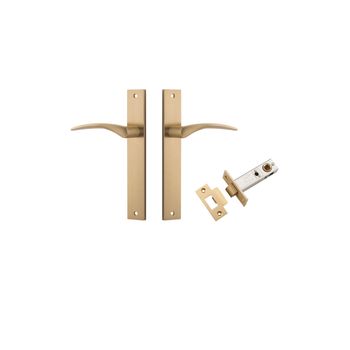

What's in the box
Features & Benefits
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Oxford levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Inbuilt privacy lock options are available for levers on round and square rose.
Specifications
| Height: | 240mm |
|---|---|
| Width: | 38mm |
| Projection: | 60mm |
| Centre to centre: | 205mm |
