Helsinki Lever - Round Rose Privacy Kit with Separate Privacy Turn
20625KPRIV60
The Helsinki lever can be purchased as a passage, privacy, or entrance kit, which includes all components required for your door to function.
As part of the Helsinki whole-of-home collection, a matching pull handle and range of cabinet pulls are also available.
Finish
Brushed Gold PVD Brushed Brass Brushed Chrome Matt Black Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy EntranceDoor Set Option

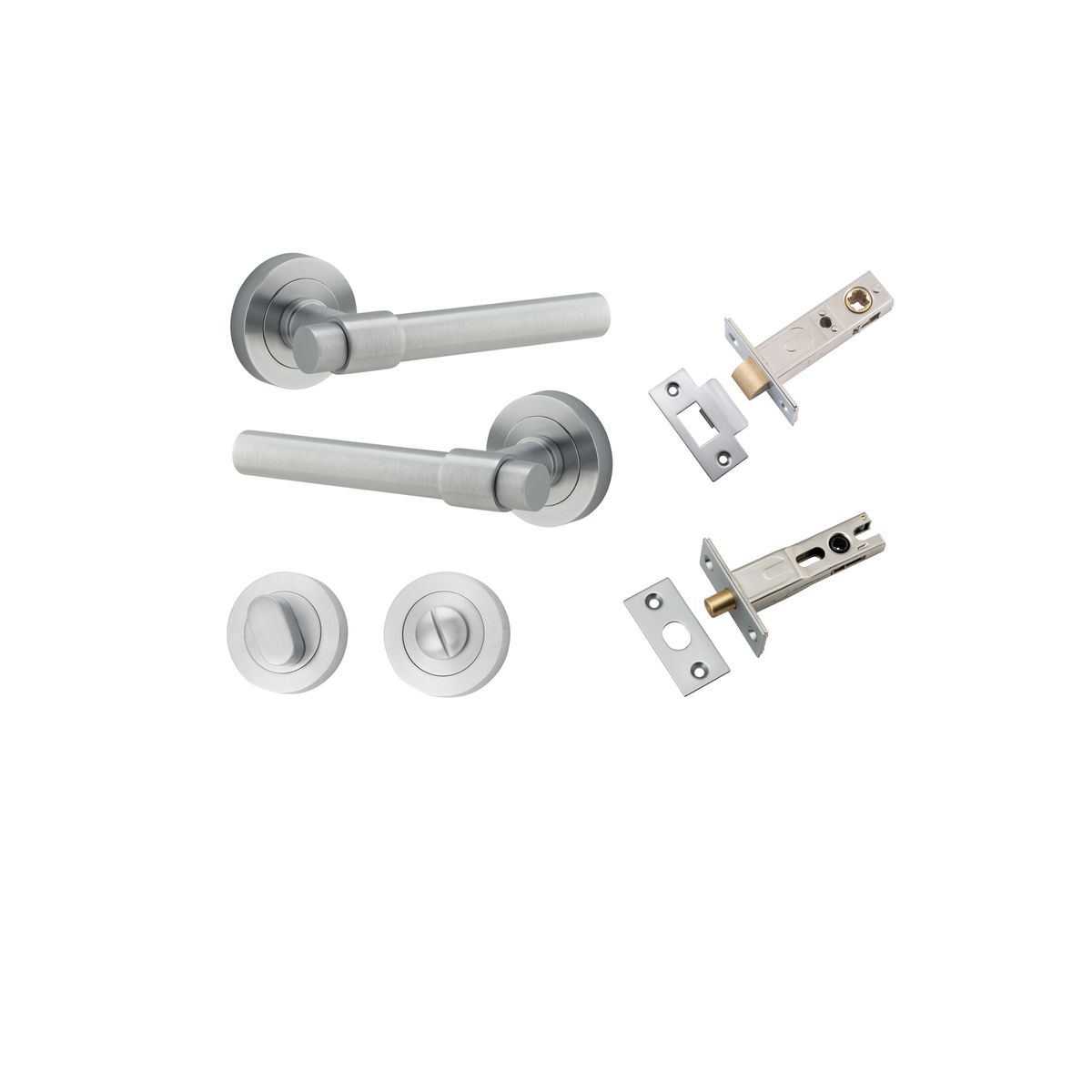

What's in the box
2 x Levers on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Turn Oval Concealed Fix Round / Square
1 x Privacy Bolt Round Backset 60mm
1 x Standard Spindle
2 x Sprung Spindles
2 x Privacy Spindles
39 x Screws
2 x Dust Boxes
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
1 x Instruction Manual
*With Square Rose only
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Helsinki levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Backplate Diameter: | 52mm |
| Height: | 52mm |
| Width: | 52mm |
| Length: | 137mm |
| Projection: | 61mm |
