Osaka Lever - Round Rose Passage Kit
20774KPASS60
Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface.
The Osaka lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Osaka whole-of-home collection, a matching half moon pull, and range of cabinetware is also available.
The Osaka lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Osaka whole-of-home collection, a matching half moon pull, and range of cabinetware is also available.
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option

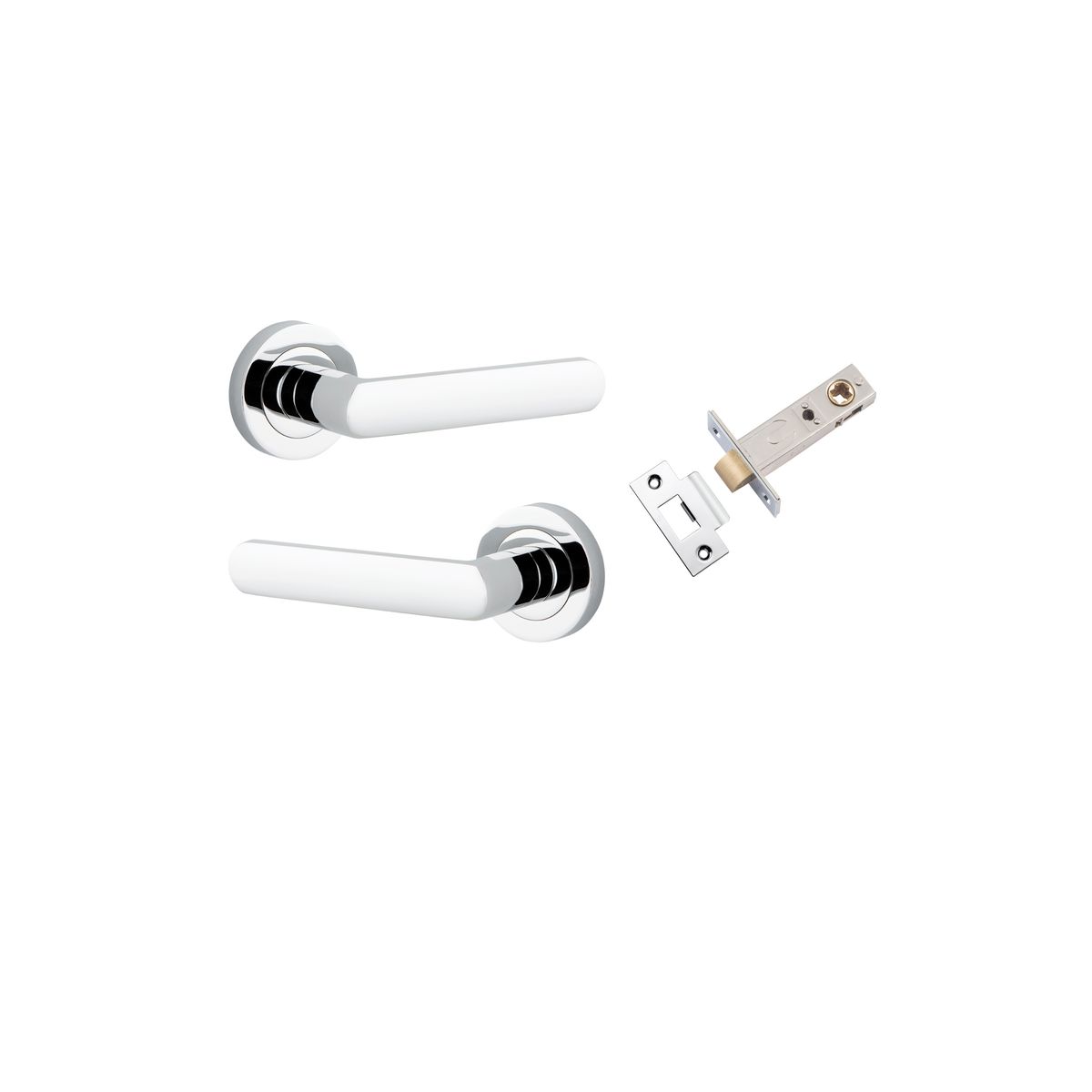

What's in the box
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Osaka levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Backplate Diameter: | 52mm |
| Height: | 52mm |
| Width: | 52mm |
| Length: | 120mm |
| Projection: | 55mm |
