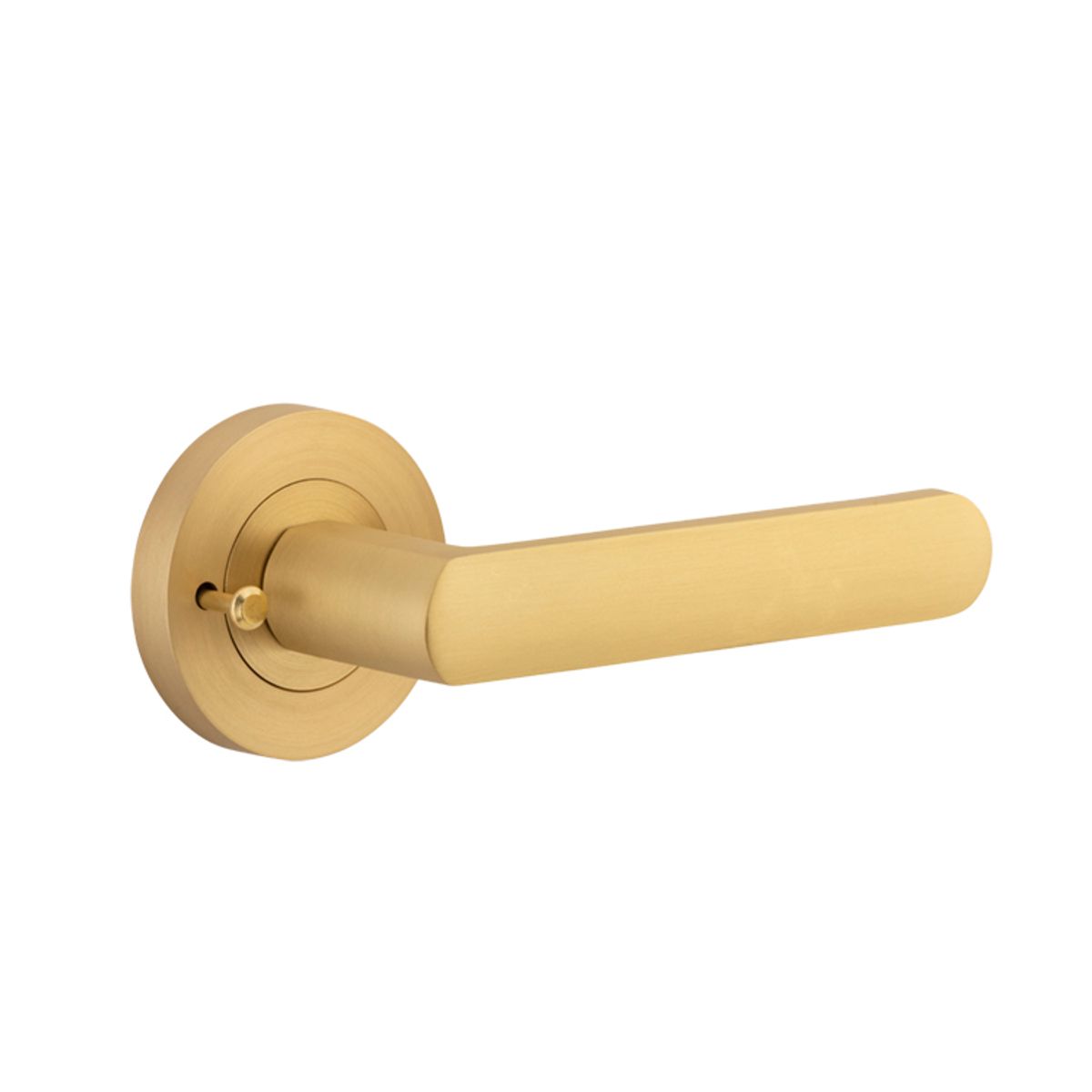

Osaka Lever - Round Rose (Inbuilt Privacy)
20776KIBPRIV60
Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface.
The Osaka lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Osaka whole-of-home collection, a matching half moon pull, and range of cabinetware is also available.
The Osaka lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
As part of the Osaka whole-of-home collection, a matching half moon pull, and range of cabinetware is also available.
Door Function
Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Door Set Option

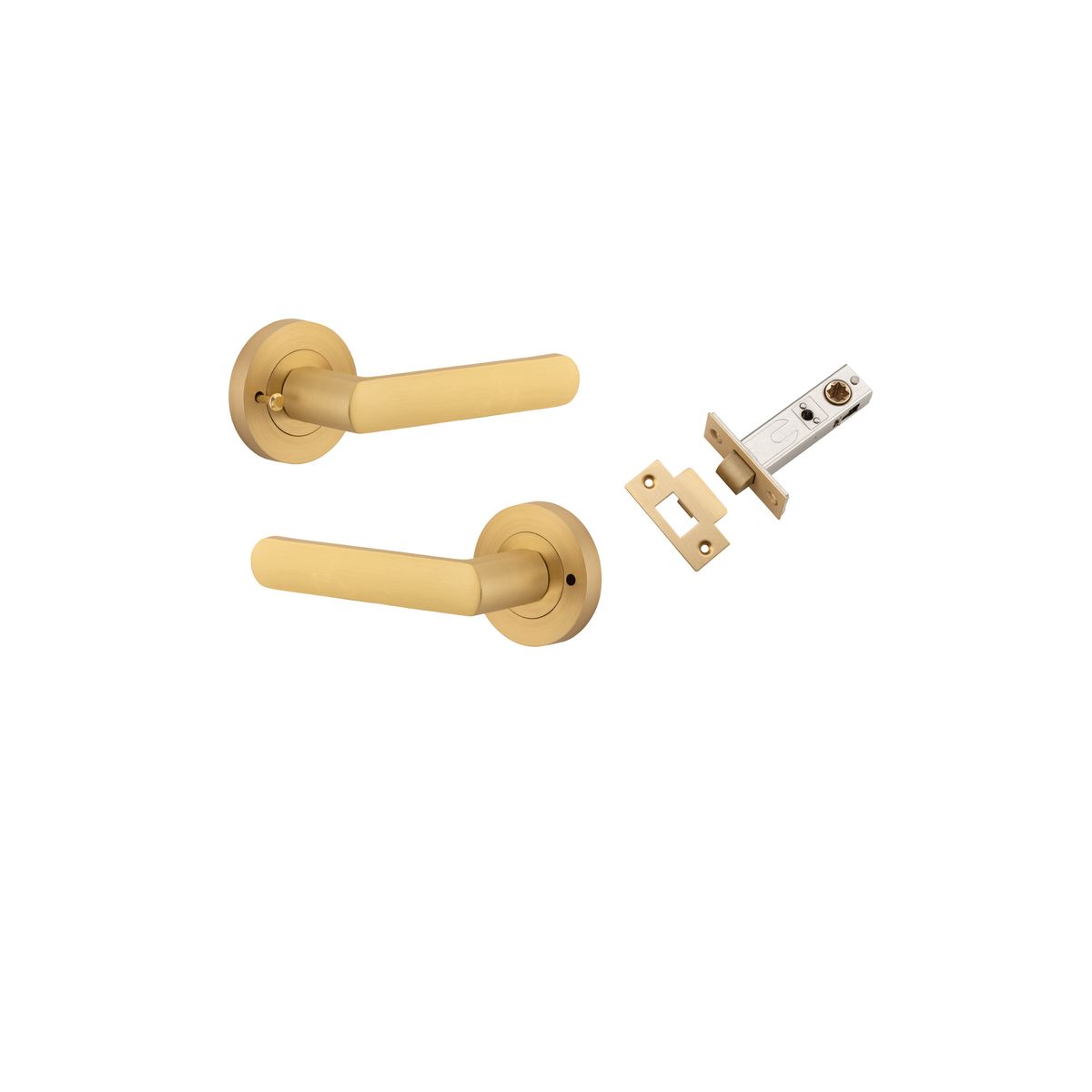

What's in the box
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Osaka levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Backplate Diameter: | 58mm |
| Height: | 58mm |
| Width: | 58mm |
| Length: | 120mm |
| Projection: | 55mm |
