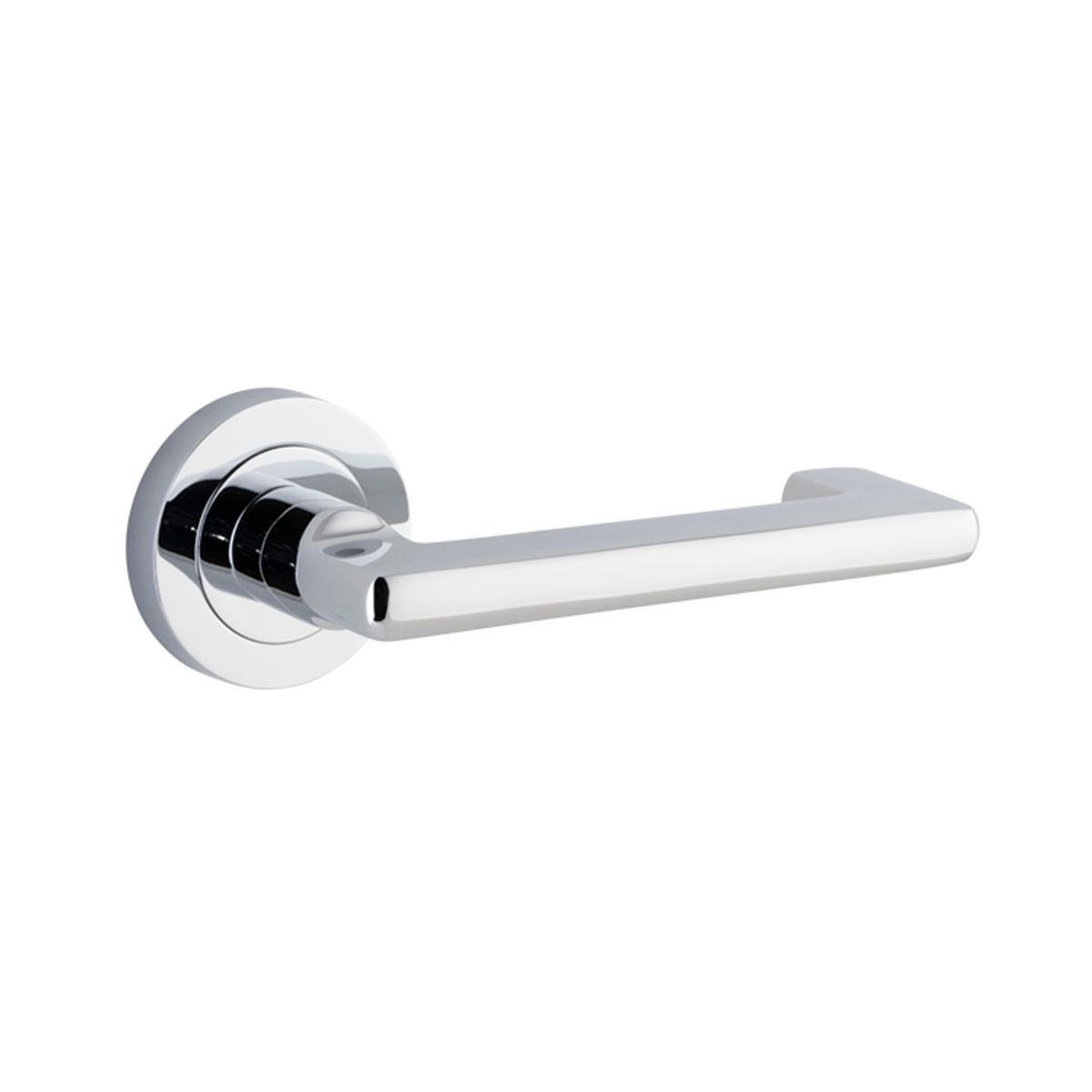

Baltimore Return Lever - Round Rose
20784
The Baltimore Return lever features sleek lines and is both fire-rated to 2 hours and DDA compliant, making it the perfect option for any commercial project. Available in selected finishes and complementing the Baltimore range of products.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Baltimore Return levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). The Baltimore Return lever is compliant with Australian Standards AS 1428.1-2009 Design for Access & Mobility. For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Inbuilt privacy lock options are available for levers on round and square rose.
Specifications
| Backplate Diameter: | 52mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 128mm |
| Projection: | 57mm |
| Centre to centre: | 41.5mm |
