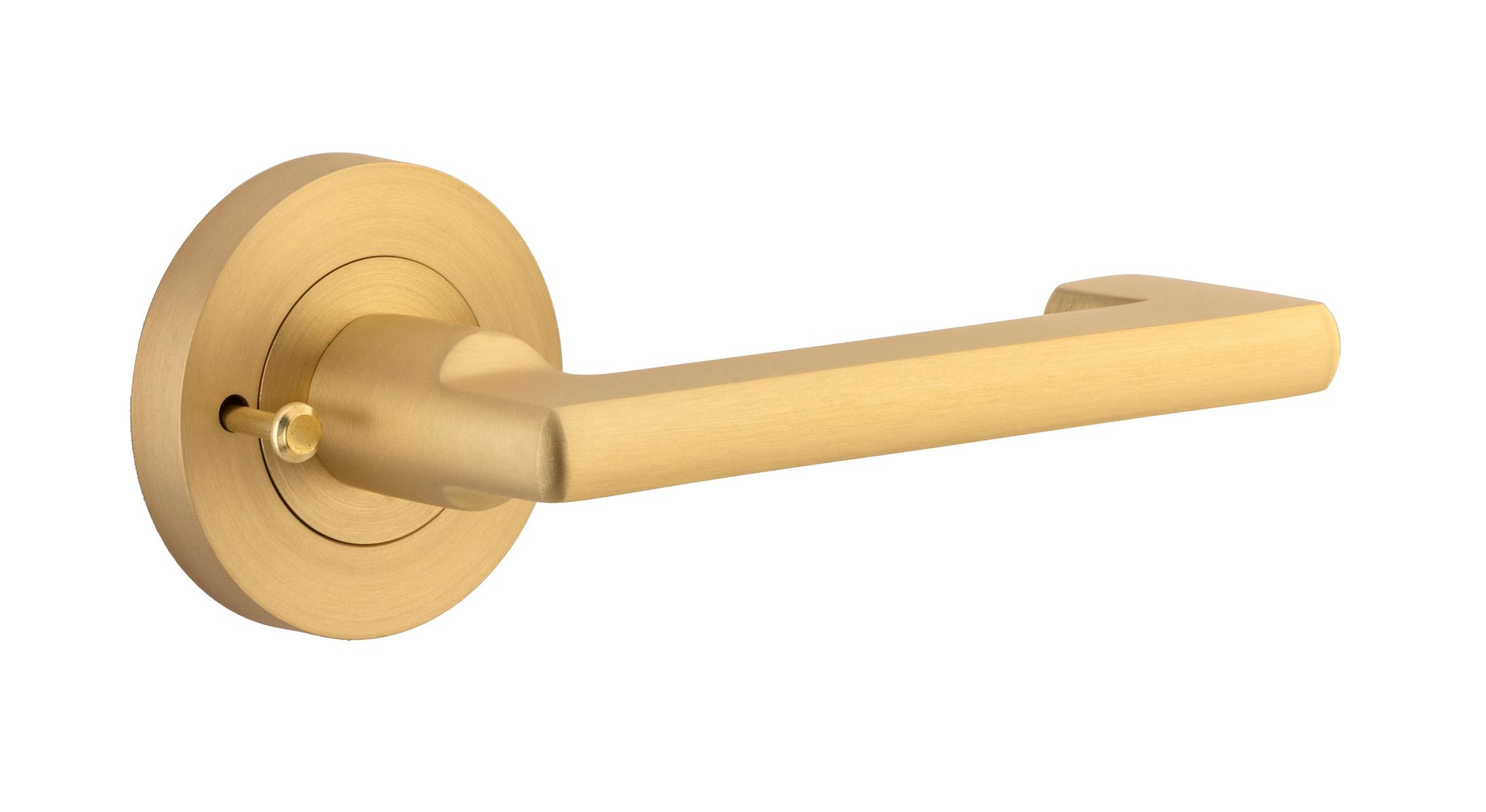

Baltimore Return Lever - Round Rose (Inbuilt Privacy)
20786KIBPRIV60

The Baltimore Return lever with inbuilt privacy lock features sleek lines and is fire-rated to 2 hours, making it the perfect option for any commercial project. Available in selected finishes and complementing the Baltimore range of products.

60mm tube latch to suit inbult privacy is provided.

Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.

Door Function

Passage Privacy Entrance
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

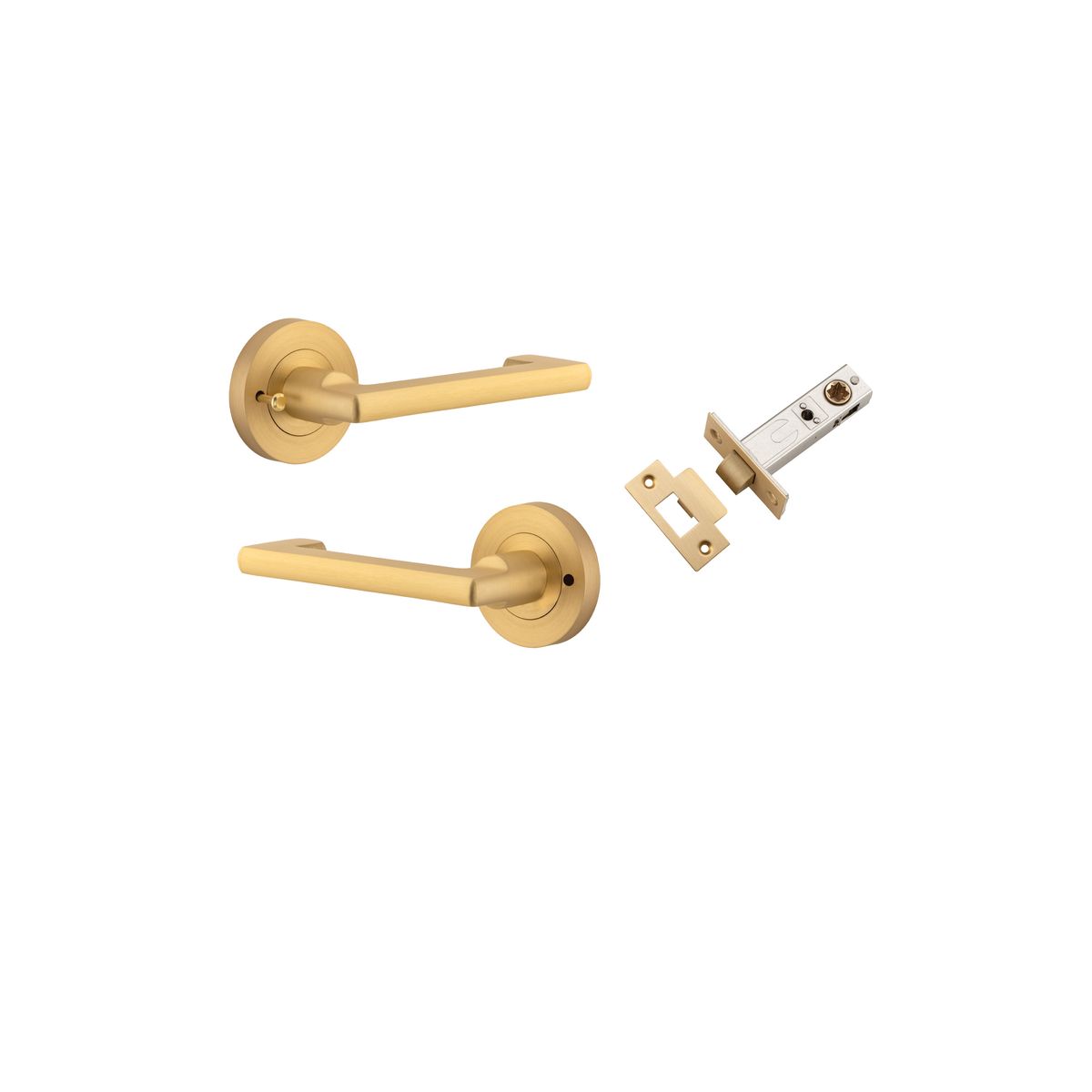

What's in the box

2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

Features & Benefits

  • Cycle Tested
    Successfully tested to meet highest durability rating (500,000 cycles)

Notes

All Baltimore Return levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.

This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

Specifications

Backset:60mm
Backplate Diameter:58mm
Height:58mm
Width:58mm
Length:128mm
Projection:57mm
Centre to centre:41.5mm
