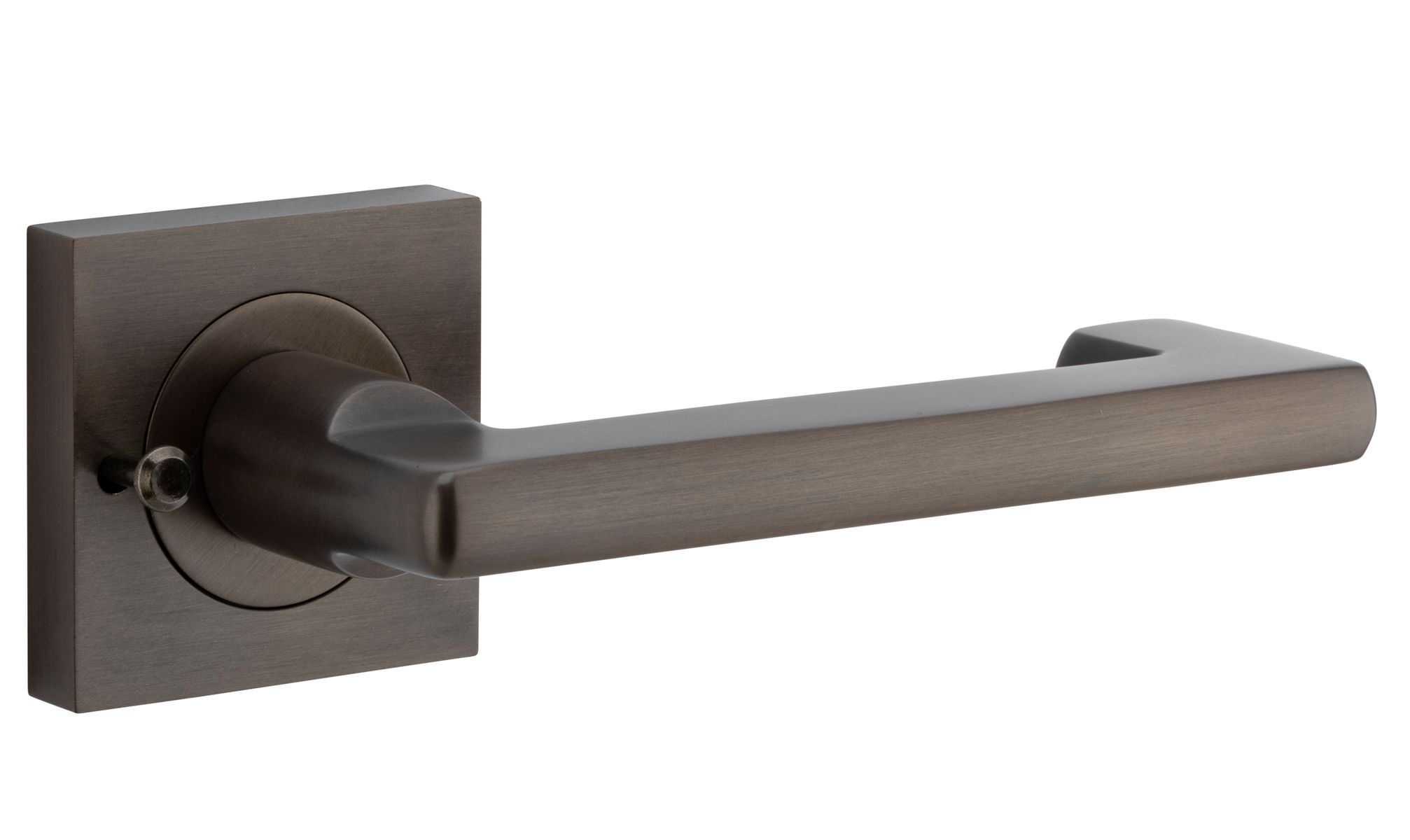

Baltimore Return Lever - Square Rose (Inbuilt Privacy)
21171KIBPRIV60
60mm tube latch to suit inbult privacy is provided.
Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy EntranceDoor Set Option

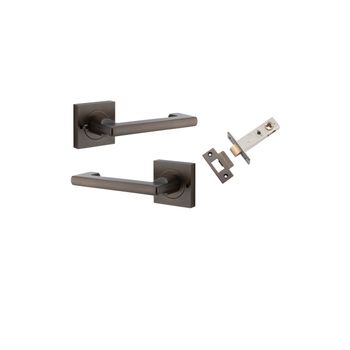

What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Baltimore Return levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 128mm |
| Projection: | 57mm |
| Centre to centre: | 41.5mm |
