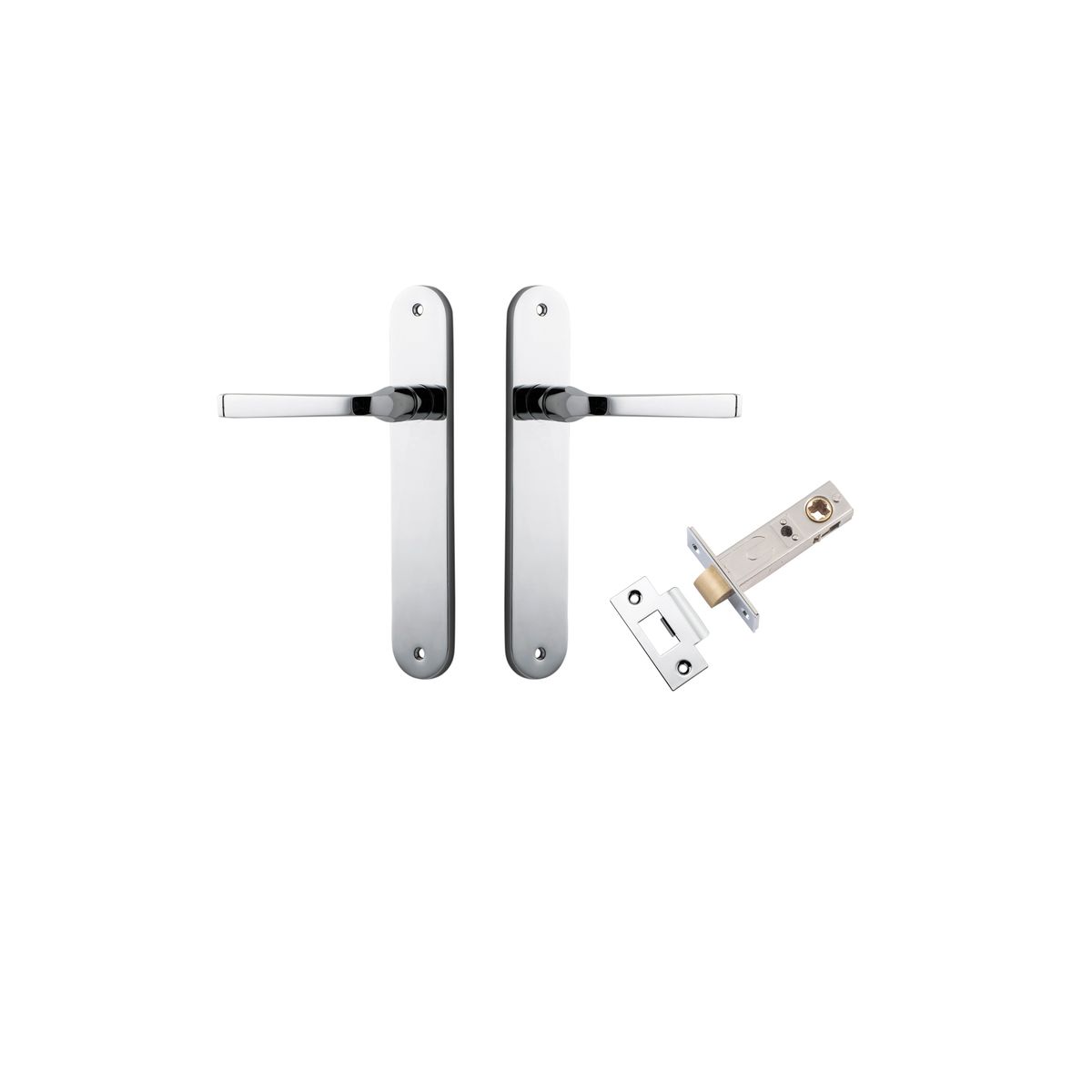

Annecy Lever - Oval Backplate Passage Kit
11732KPASS60

Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time.

The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

Door Function

Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

What's in the box

2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

Features & Benefits

  • Fire Rated
    Successfully fire rated to 2 hours*
  • * Accessories are not fire rated

Notes

All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications

Backset:60mm
Height:240mm
Width:40mm
Length:117mm
Projection:63mm
Centre to centre:205mm
Download Spec Sheet
Find a Retailer
11732KPASS60 - Annecy Lever - Oval Backplate Passage Kit - Polished Chrome - Passage
11732KPASS60 - Annecy Lever - Oval Backplate Passage Kit - Polished Chrome - Passage
