Paddington Knob - Chamfered Backplate Passage Kit
12331KPASS60

The Paddington knob provides a subtle nod to its English roots with a refined, elegant appearance, a versatile knob that is perfectly suited to a concealed fix rose or a number of different backplates.

The Paddington knob can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

Door Function

Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

What's in the box

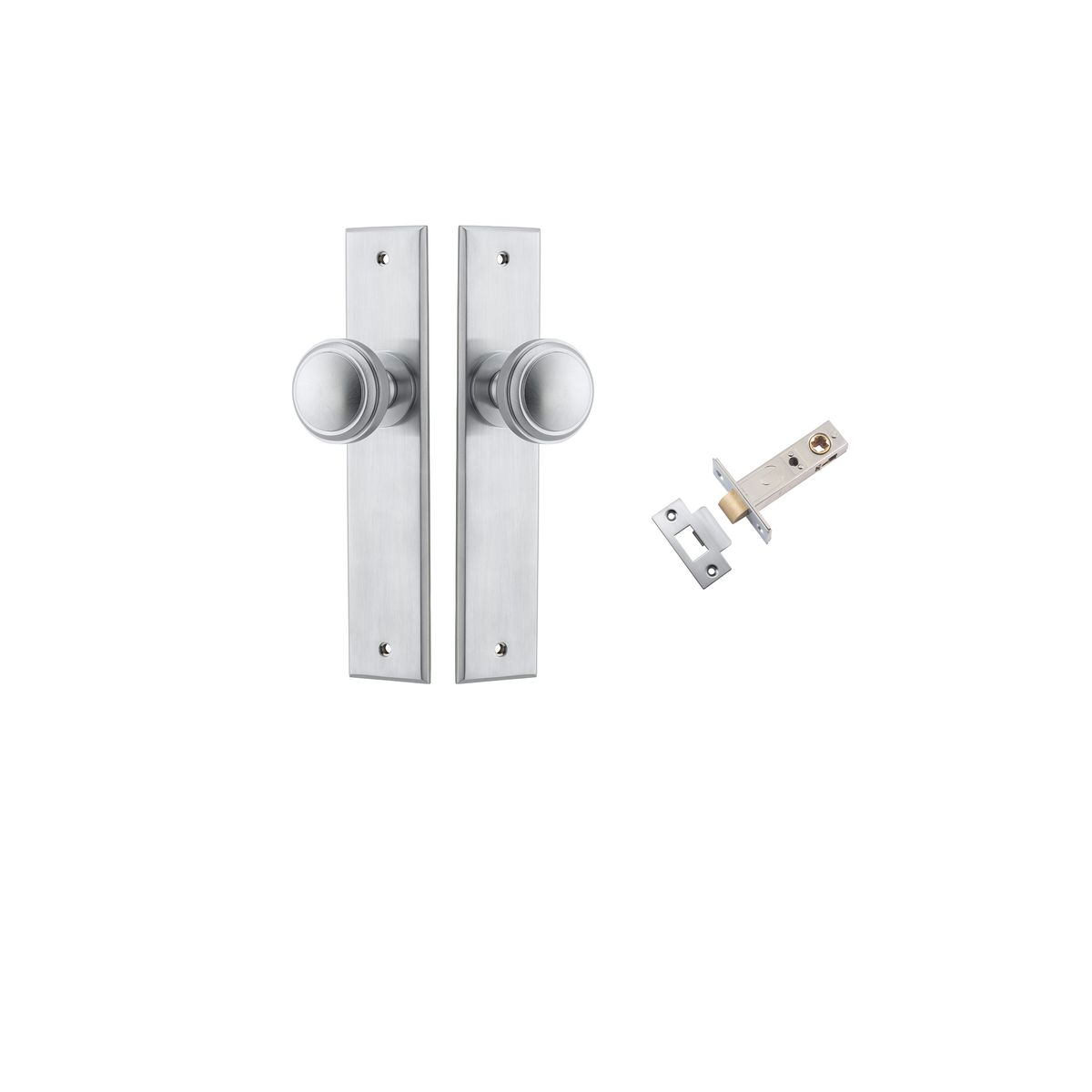

2 x Paddington Knobs on Chamfered Backplate in Brushed Chrome
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

Notes

All Paddington Knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications

Height:240mm
Width:50mm
Length:55mm
Projection:63mm
Centre to centre:205mm
Download Spec Sheet
Find a Retailer
12331KPASS60 - Paddington Knob - Chamfered Backplate Passage Kit - Brushed Chrome - Passage
12331KPASS60 - Paddington Knob - Chamfered Backplate Passage Kit - Brushed Chrome - Passage
