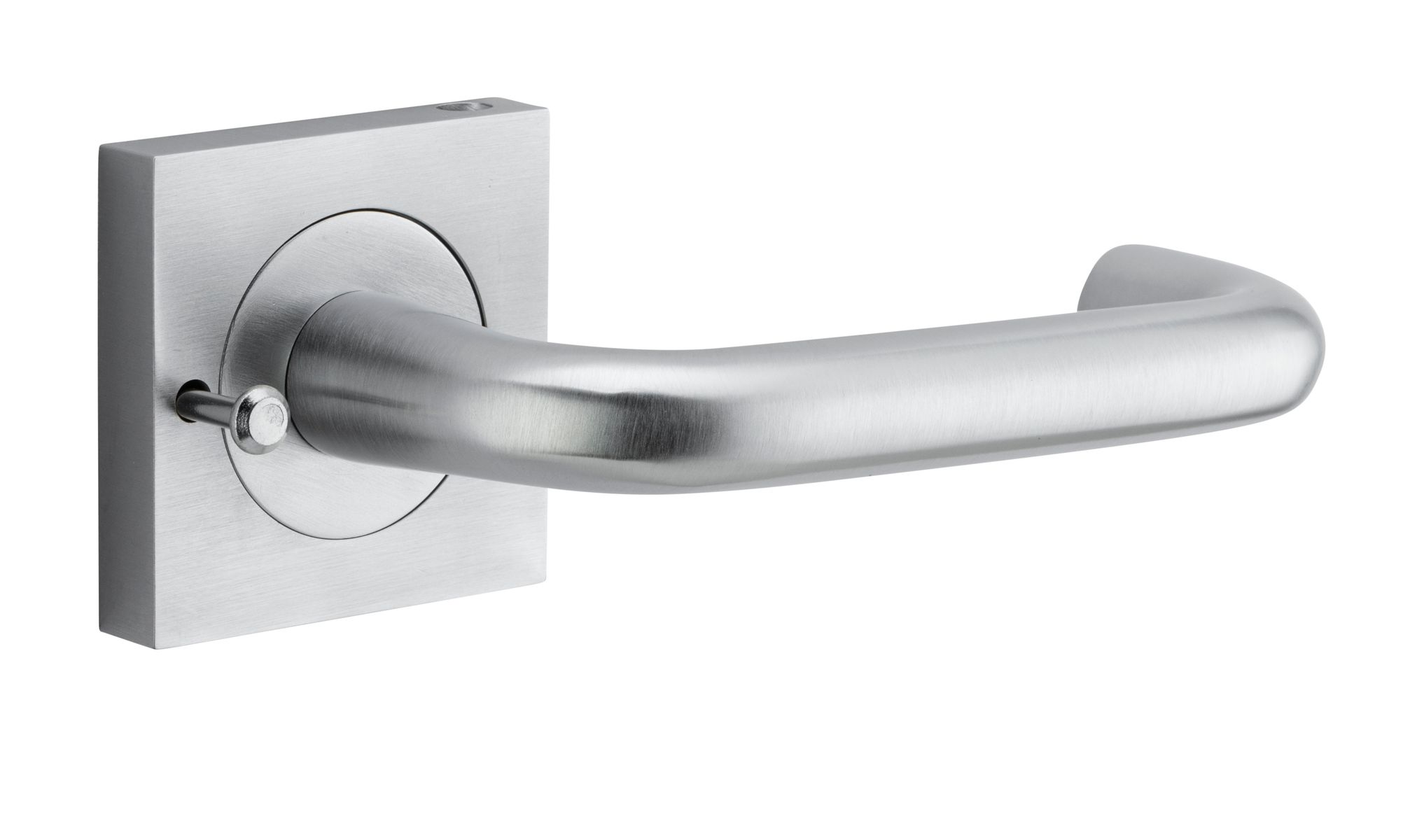

Oslo Lever - Square Rose (Inbuilt Privacy)
20365KIBPRIV60
60mm tube latch to suit inbult privacy is provided.
Please note that the Oslo Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature Brass
Door Function
Passage Privacy EntranceDoor Set Option

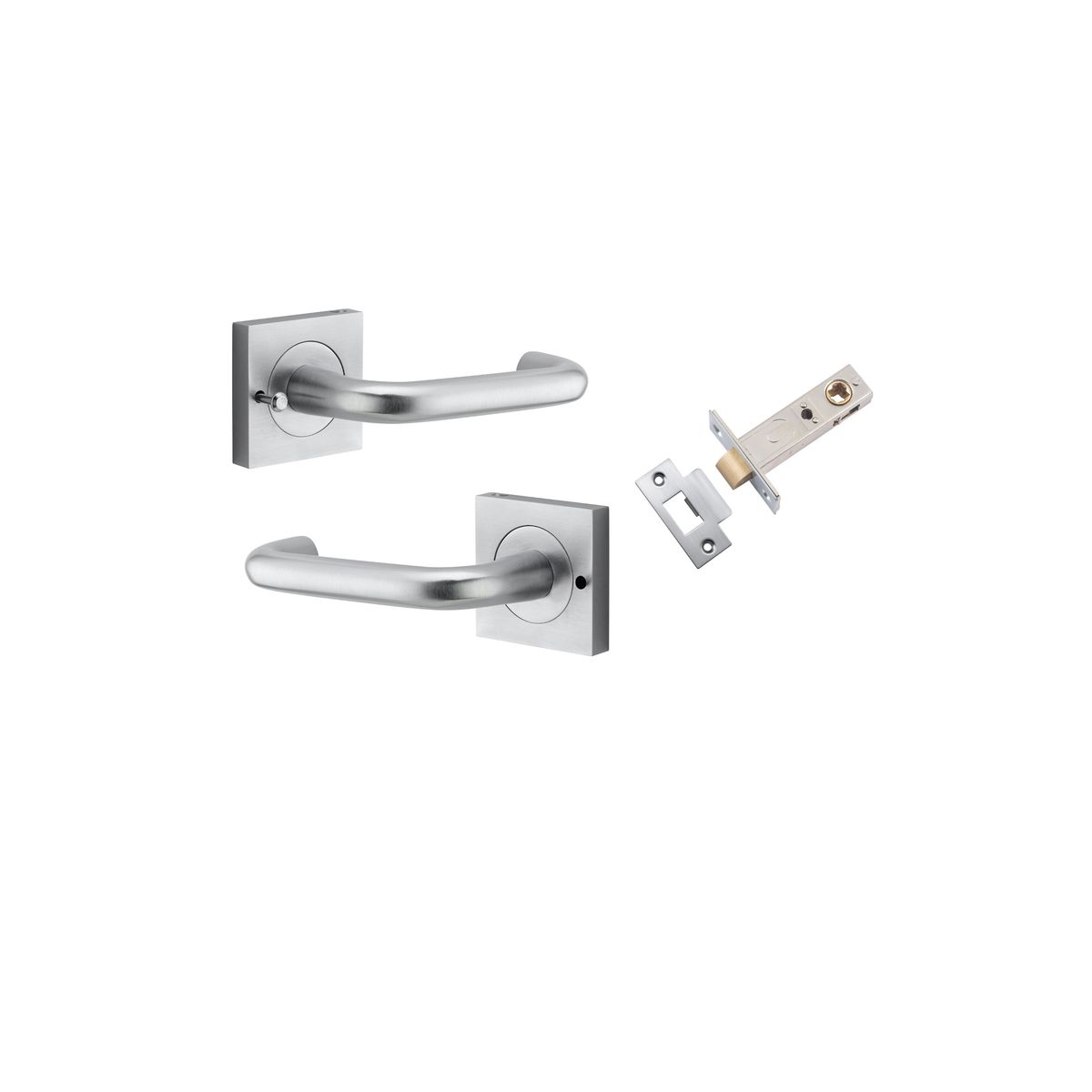

What's in the box
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
Notes
All Oslo levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). Please note that the Oslo Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 118mm |
| Projection: | 57mm |
| Centre to centre: | 41.5mm |
