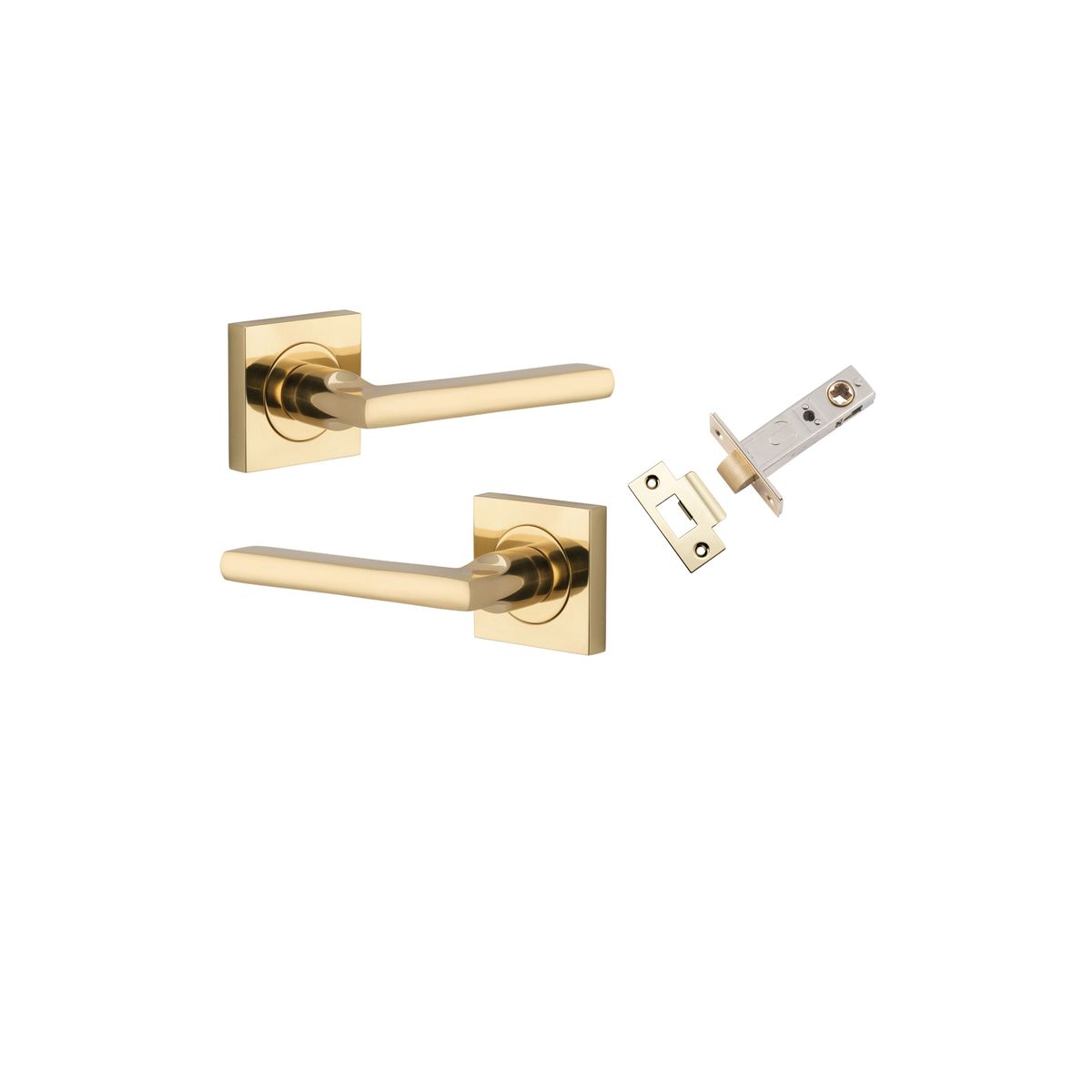

Baltimore Lever - Square Rose Passage Kit
0270KPASS60

The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic.

Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.

Door Function

Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

What's in the box

2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only

Features & Benefits

  • Cycle Tested
    Successfully tested to meet highest durability rating (500,000 cycles)
  • Fire Rated
    Successfully fire rated to 2 hours*
  • * Accessories are not fire rated

Notes

All Baltimore levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications

Backset:60mm
Height:52mm
Width:52mm
Length:118mm
Projection:57mm
Centre to centre:41.5mm
Download Spec Sheet
Find a Retailer
0270KPASS60 - Baltimore Lever - Square Rose Passage Kit - Polished Brass - Passage
0270KPASS60 - Baltimore Lever - Square Rose Passage Kit - Polished Brass - Passage
