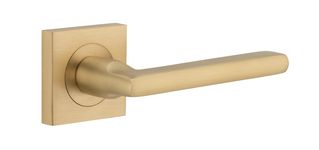

Baltimore Lever - Square Rose Passage Kit
0458KPASS60
The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic.
Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.
Part of the Baltimore collection of products, matching cabinetware and pull handles are also available.
Finish
Brushed Brass Brushed Chrome Matt Black Polished Brass Polished Chrome Satin Nickel Signature Brass
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Door Set Option

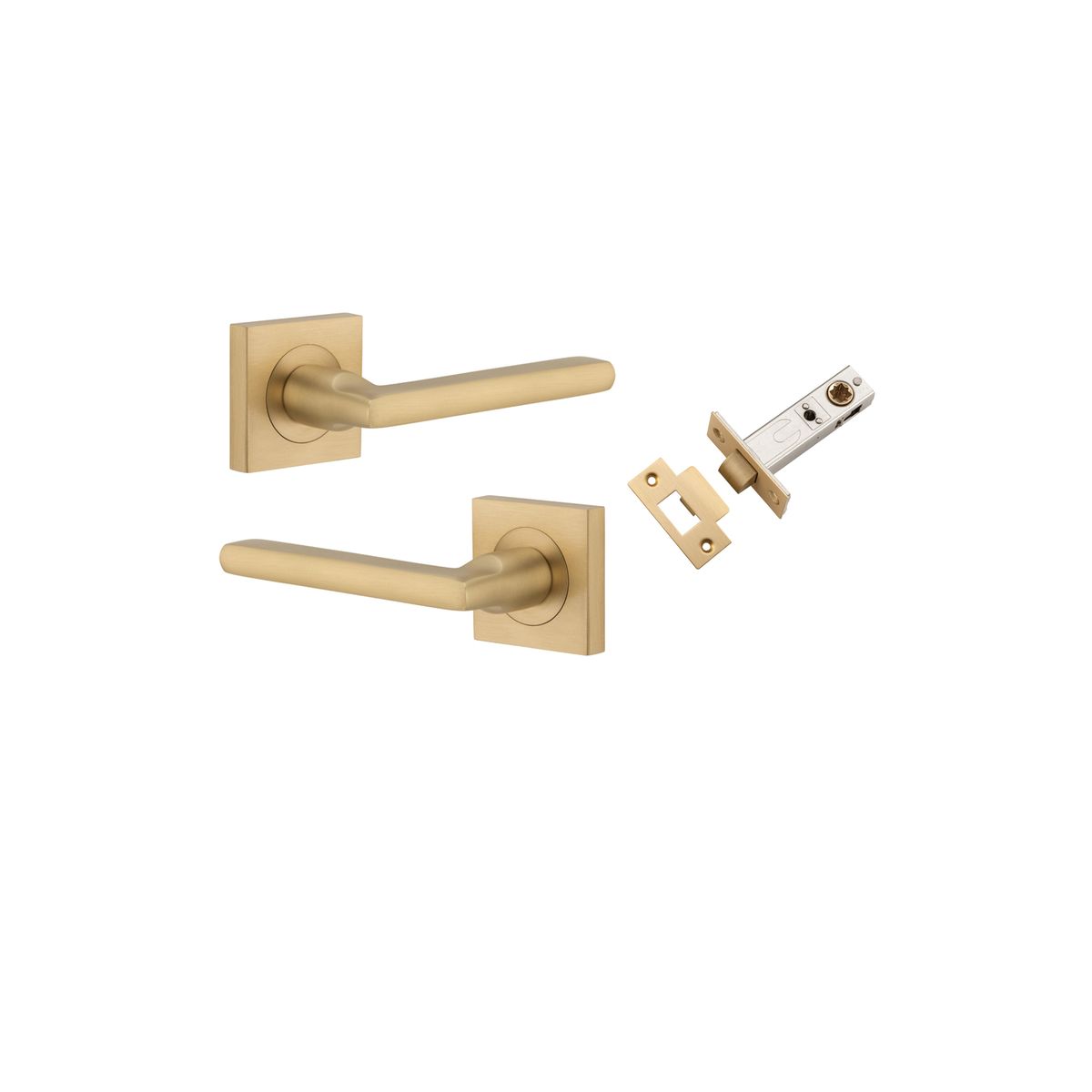

What's in the box
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only
Features & Benefits
-
Cycle TestedSuccessfully tested to meet highest durability rating (500,000 cycles)
-
Fire RatedSuccessfully fire rated to 2 hours*
- * Accessories are not fire rated
Notes
All Baltimore levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.
Specifications
| Backset: | 60mm |
|---|---|
| Height: | 52mm |
| Width: | 52mm |
| Length: | 118mm |
| Projection: | 57mm |
| Centre to centre: | 41.5mm |
